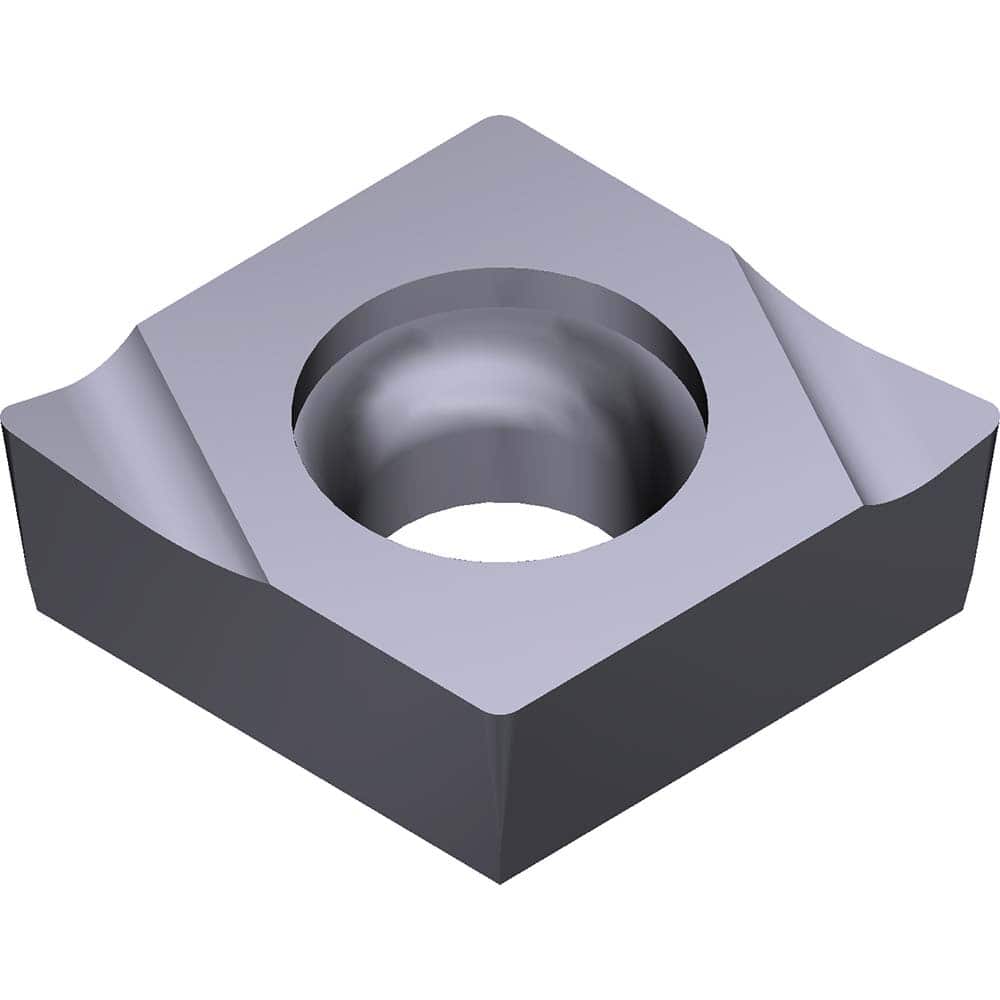

CCGT03X101RFY-AC5025S Carbide Turning Insert Absotech Bronze Finish, 0.1398″ Long, 0.1378″ Inscribed Circle, 0.0039″ Corner Radius, 0.0551″ Thick, 80° Included Angle, Series AC5000S
Item #: 12154399
Brand: Sumitomo
Model #: 10T6ARP
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 03X101 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5025S |
| Hole Diameter (Decimal Inch) | 1.9000 |
| Inscribed Circle (Decimal Inch) | 0.1378 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.0551 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.1398 |
| Secondary Workpiece Material | Superalloy |
| Secondary Workpiece Material Code | S |
| Ansi Code | CCGT03X101RFY |
| Iso Code | CCGT03X101R-FY |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | CCGT03X101RFY-AC5025S |
| Chip Breaker | RFY |
| Coating/Finish | Absotech Bronze |
