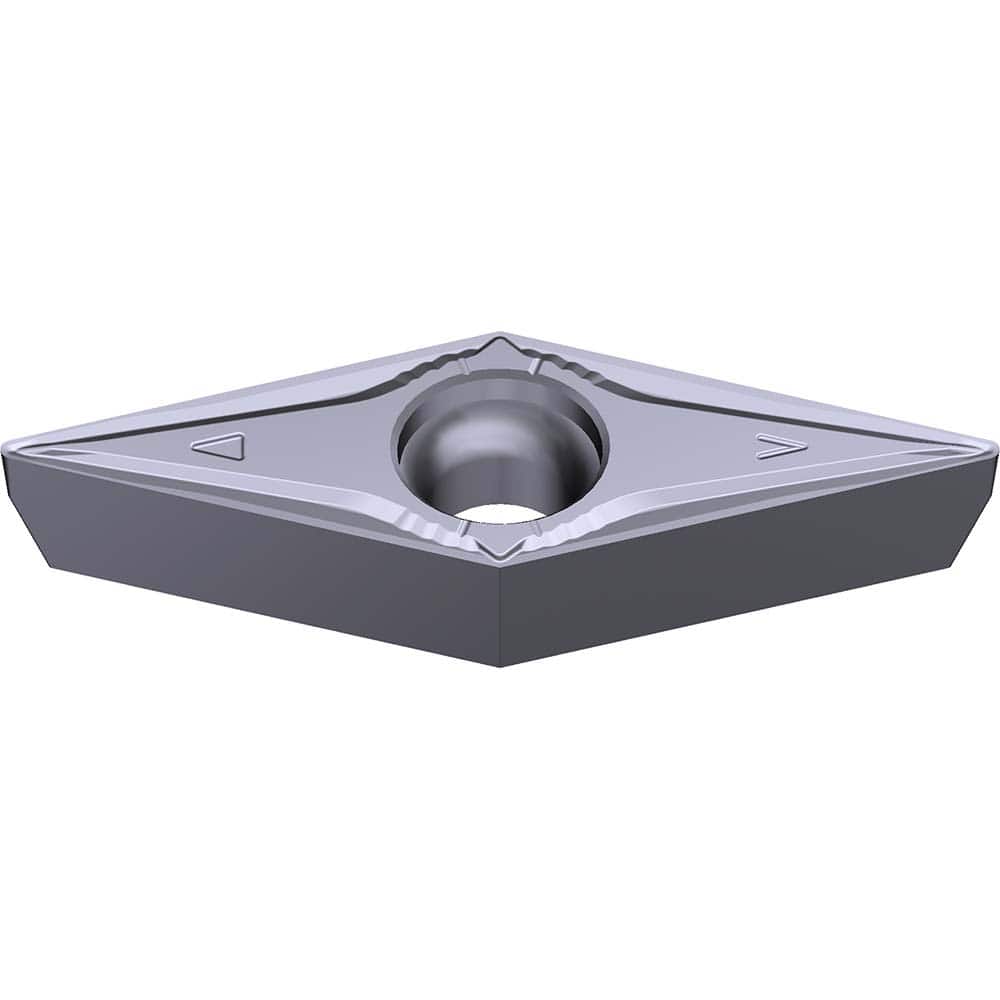

VCMT331EGU-AC5025S Carbide Turning Insert Absotech Bronze Finish, 0.6535″ Long, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 0.1874″ Thick, 35° Included Angle, Series AC5000S
Item #: 12153540
Brand: Sumitomo
Model #: 19T6DDR
Product Specifications
| Insert Style | VCMT |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5025S |
| Hole Diameter (Decimal Inch) | 4.4000 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6535 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel |
| Ansi Code | VCMT331EGU |
| Iso Code | VCMT160404N-GU |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | VCMT331EGU-AC5025S |
| Chip Breaker | EGU |
| Coating/Finish | Absotech Bronze |
