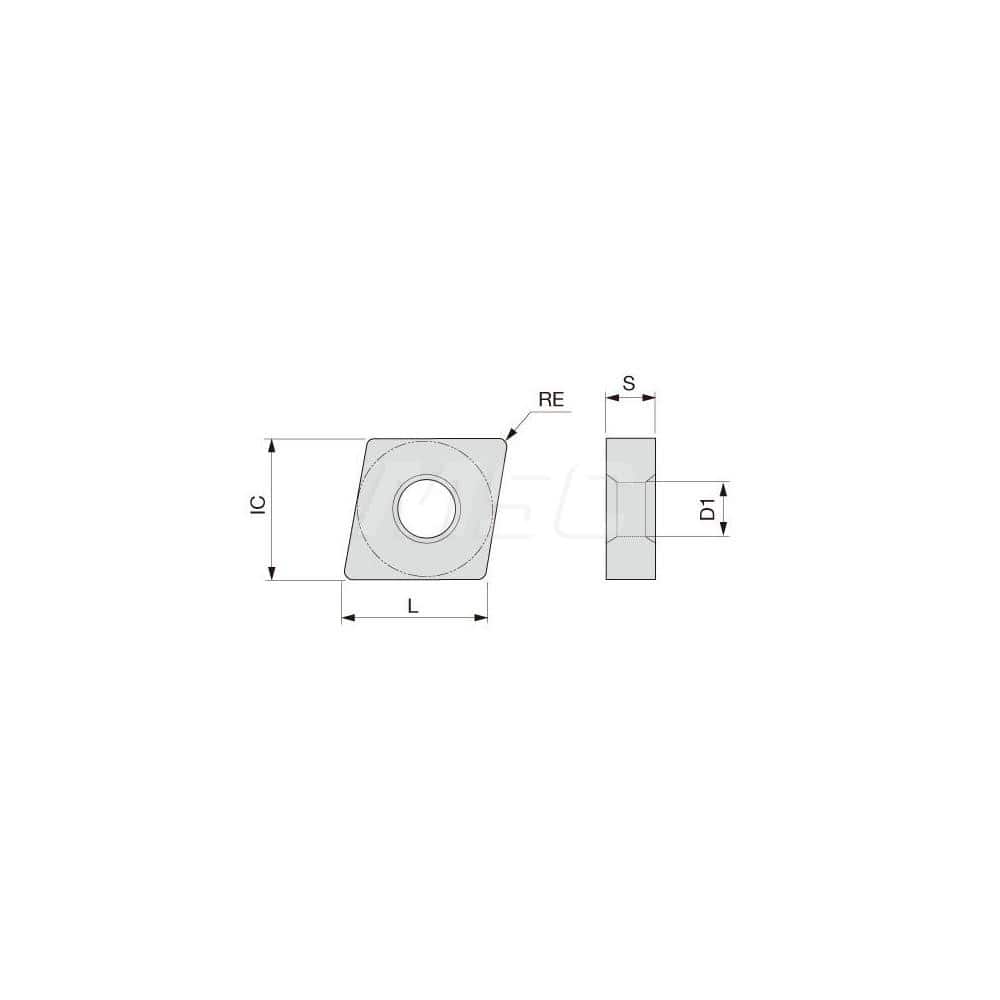

Turning Insert: CNMG432SF T6120, Solid Carbide TiCN & TiN Finish, Neutral, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Diamond, Series CNMG
Item #: 12151361
Brand: Tungaloy
Model #: 6805372
Product Specifications
| Insert Style | CNMG |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T6120 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Ansi Code | CNMG432SFT6120 |
| Iso Code | CNMG120408-SF T6120 |
| Chip Breaker | SF |
| Coating/Finish | TiCN; TiN |
