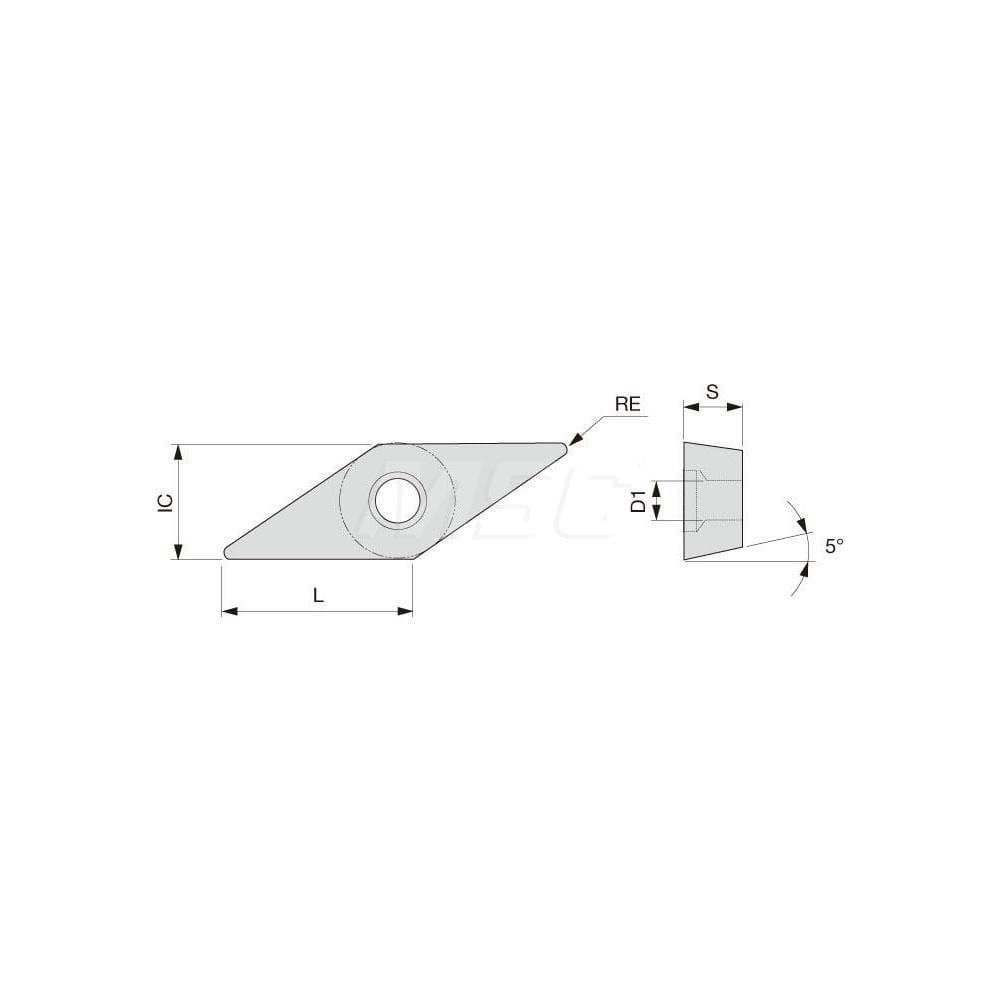

Turning Insert: VBMT331CM T515, Solid Carbide TiCN & Al2O3 Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 35.0 ° N/A Diamond, Series VBMT
Item #: 12083895
Brand: Tungaloy
Model #: 6741554
Product Specifications
| Insert Style | VBMT |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T515 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | VBMT |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | VBMT331CMT515 |
| Iso Code | VBMT160404-CM T515 |
| Chip Breaker | CM |
| Coating/Finish | TiCN; Al2O3 |
