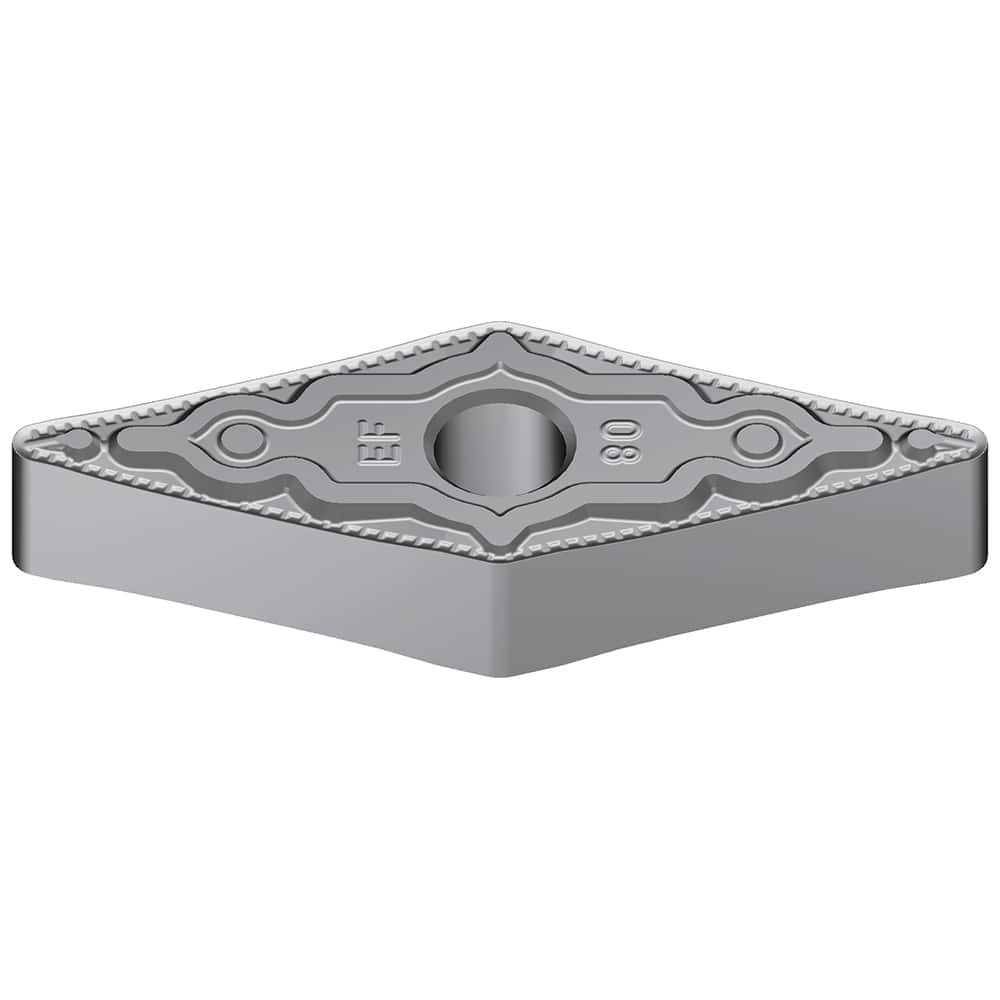

Sumitomo - VNMG332EEF AC8015P Carbide Turning Insert
Item #: 12072948
Brand: Sumitomo
Model #: 19T4CGX
Product Specifications
| Insert Style | VNMG |
| Insert Size | 332 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6535 |
| Inscribed Circle (Inch) | 0.375 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | AC8015P |
| Coating | Absotech |
| Chip Breaker | EEF |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNMG160408N-EF |
| Rake | Negative |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | VNMG332EEF-AC8015P |
| Primary Workpiece Material | Steel |
| Included Angle | 35 |
