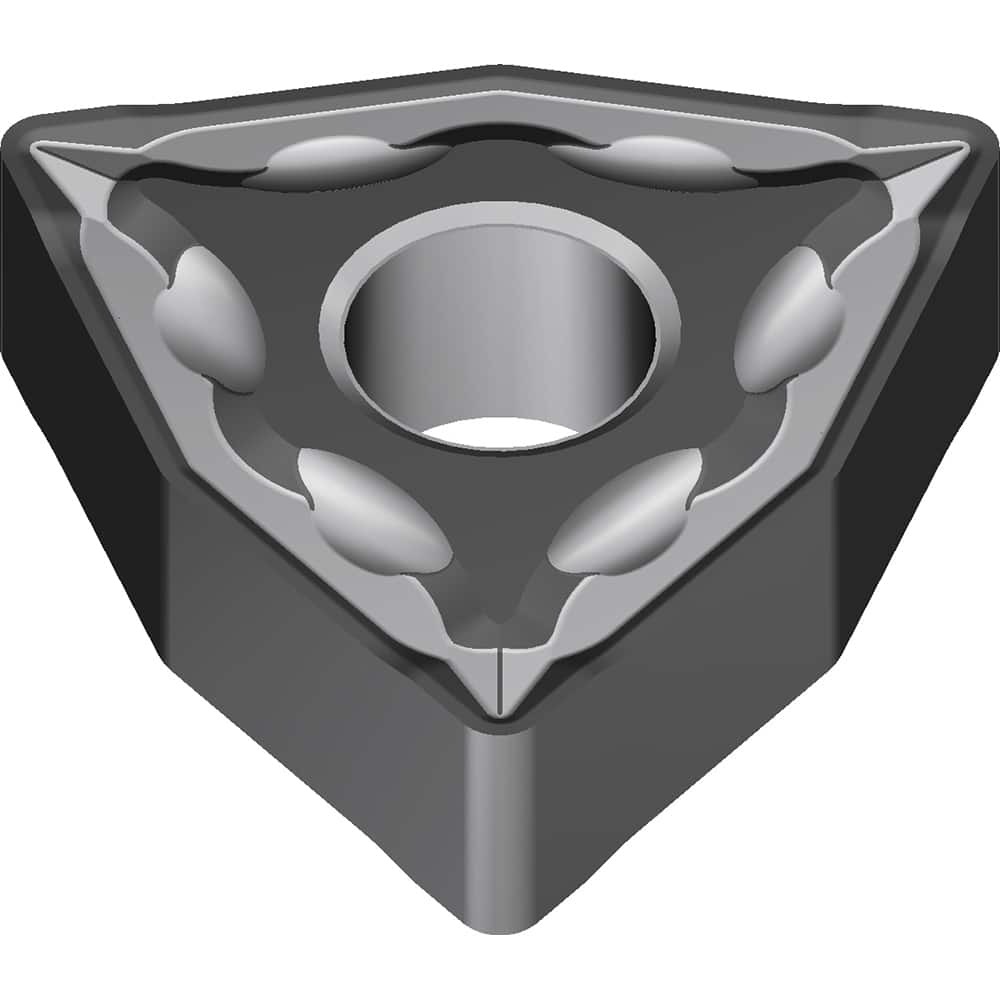

Sumitomo - WNMG434EMU AC8025P Carbide Turning Insert
Item #: 12072393
Brand: Sumitomo
Model #: 19P7733
Product Specifications
| Insert Style | WNMG |
| Insert Size | 434 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3425 |
| Inscribed Circle (Inch) | 0.5 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | AC8025P |
| Coating | Absotech |
| Chip Breaker | EMU |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | WNMG080416N-MU |
| Rake | Negative |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | WNMG434EMU-AC8025P |
| Primary Workpiece Material | Steel |
| Included Angle | 80 |
