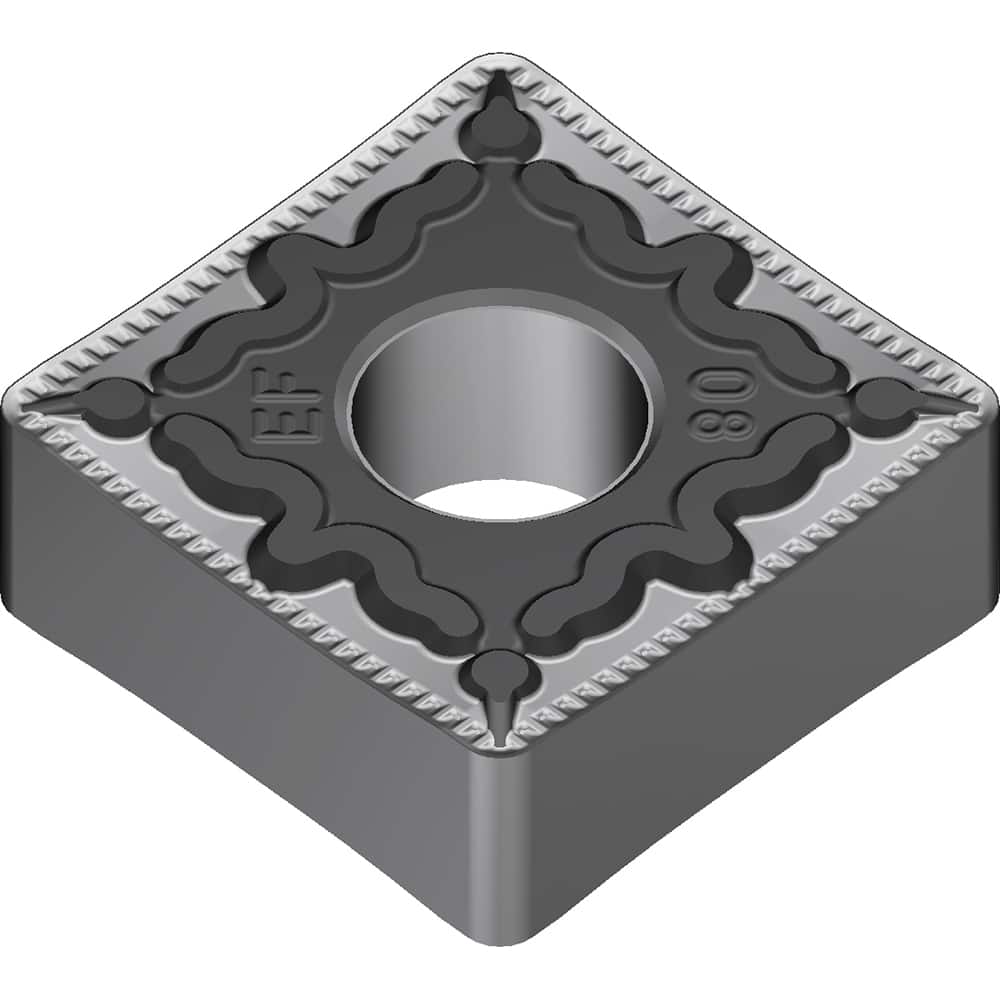

Sumitomo - SNMG431EEF AC8025P Carbide Turning Insert
Item #: 12071064
Brand: Sumitomo
Model #: 19P7CMS
Product Specifications
| Insert Style | SNMG |
| Insert Size | 431 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 0.5 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | AC8025P |
| Coating | Absotech |
| Chip Breaker | EEF |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | SNMG120404N-EF |
| Rake | Negative |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SNMG431EEF-AC8025P |
| Primary Workpiece Material | Steel |
| Included Angle | 90 |
