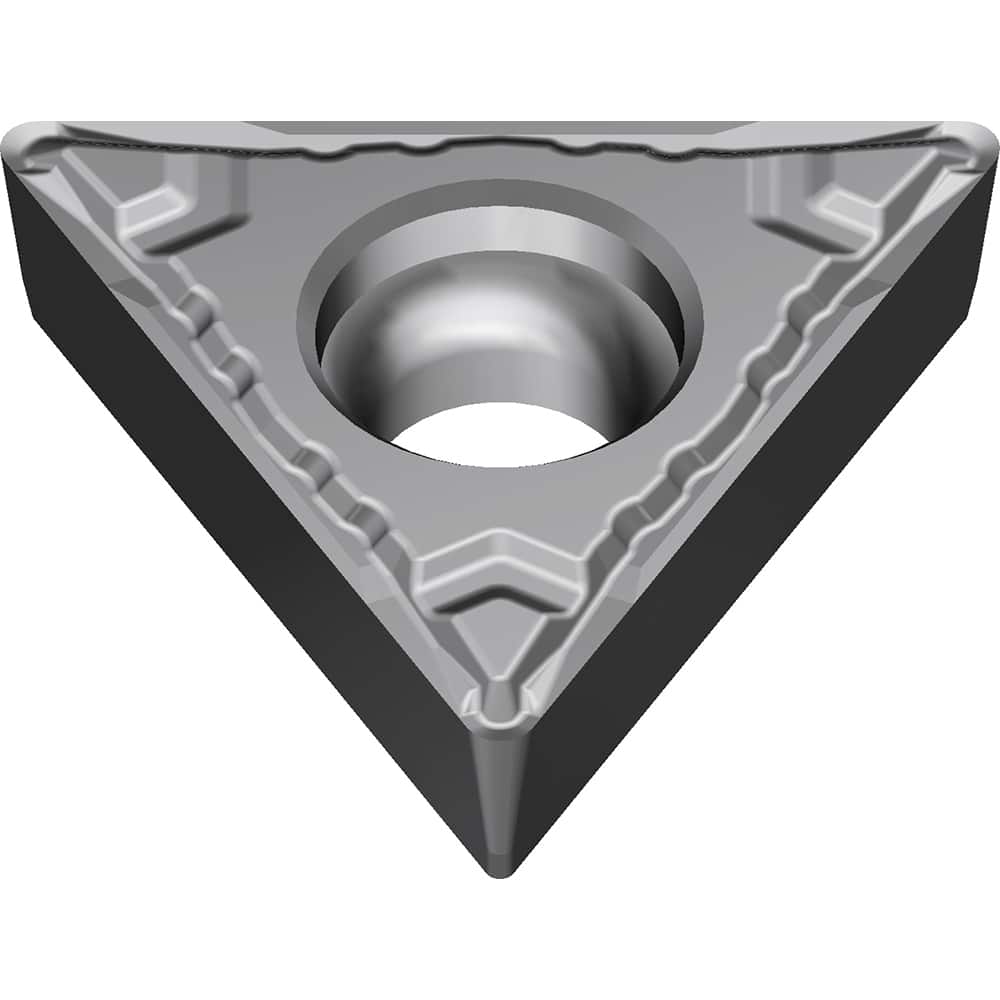

Sumitomo - TPMT1.81.51ELU AC8015P Carbide Turning Insert
Item #: 12071049
Brand: Sumitomo
Model #: 19T4BVX
Product Specifications
| Insert Style | TPMT |
| Insert Size | 1.81.51 |
| Material | Carbide |
| Length (mm) | 9.60 |
| Inscribed Circle (mm) | 5.56 |
| Thickness (mm) | 2.3800 |
| Corner Radius (mm) | 0.4 |
| Manufacturer's Grade | AC8015P |
| Coating | Absotech |
| Chip Breaker | ELU |
| Hole Diameter (mm) | 2.8000 |
| ISO Number | TPMT090204N-LU |
| Rake | Positive |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TPMT1.81.51ELU-AC8015P |
| Primary Workpiece Material | Steel |
| Included Angle | 60 |
