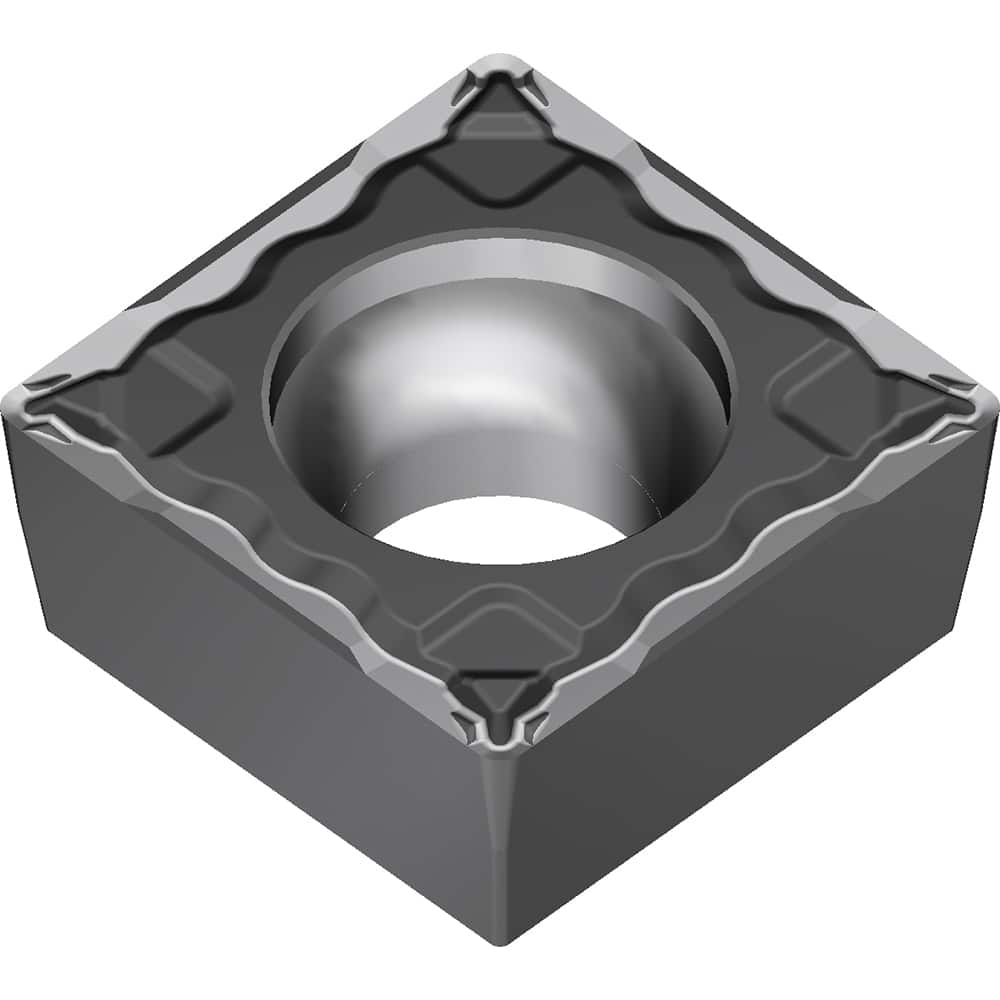

Sumitomo - SPMT321ELU AC8025P Carbide Turning Insert
Item #: 12070975
Brand: Sumitomo
Model #: 19P7BUQ
Product Specifications
| Insert Style | SPMT |
| Insert Size | 321 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 0.375 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | AC8025P |
| Coating | Absotech |
| Chip Breaker | ELU |
| Hole Diameter (Decimal Inch) | 0.1339 |
| ISO Number | SPMT090304N-LU |
| Rake | Positive |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SPMT321ELU-AC8025P |
| Primary Workpiece Material | Steel |
| Included Angle | 90 |
