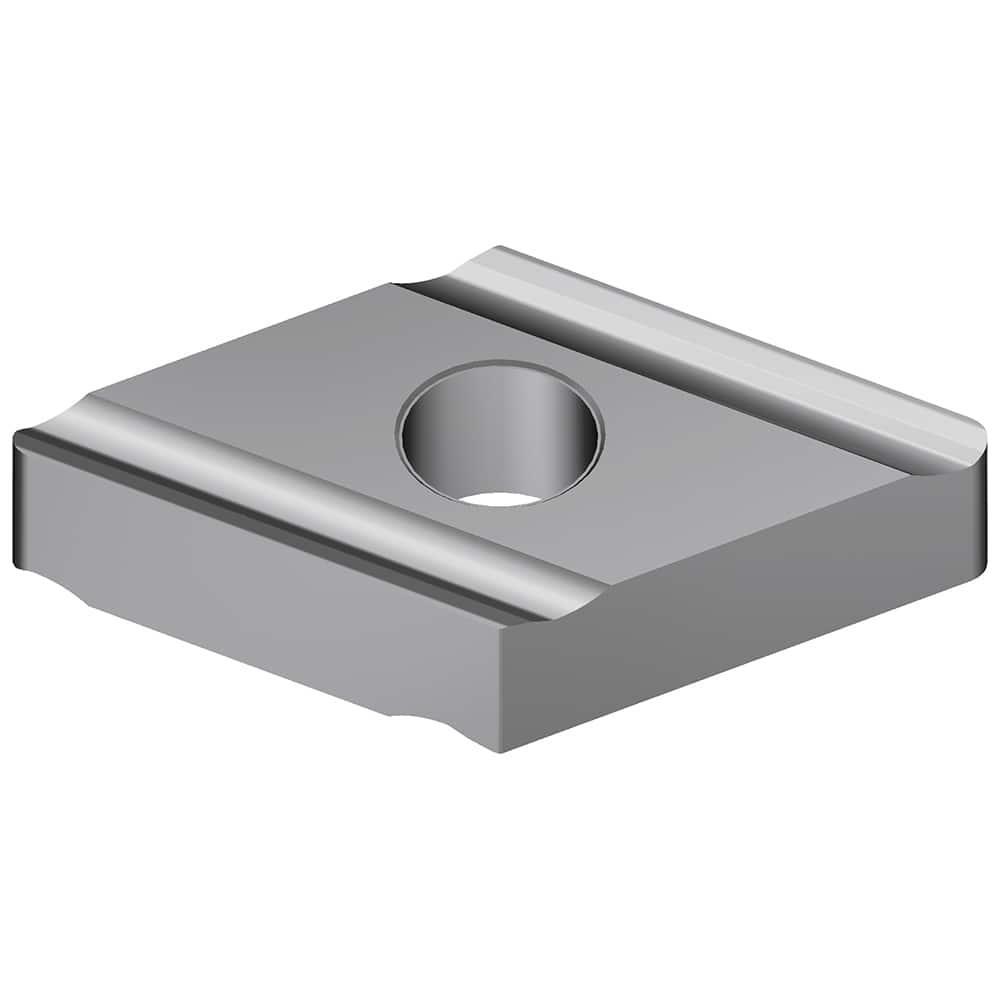

DNMR432EHM AC8035P Carbide Turning Insert Absotech Finish, 0.6102″ Long, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 0.1874″ Thick, 55° Included Angle, Series AC8000P
Item #: 12070785
Brand: Sumitomo
Model #: 19T3CBM
Product Specifications
| Insert Style | DNMR |
| Insert Shape Code | D |
| Insert Size Code | 432 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8035P |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | AC8000P |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6102 |
| Primary Workpiece Material | Steel |
| Iso Code | DNMG150408R-HM |
| Manufacturers Catalog Number | DNMR432EHM-AC8035P |
| Chip Breaker | RHM |
| Coating/Finish | Absotech |
