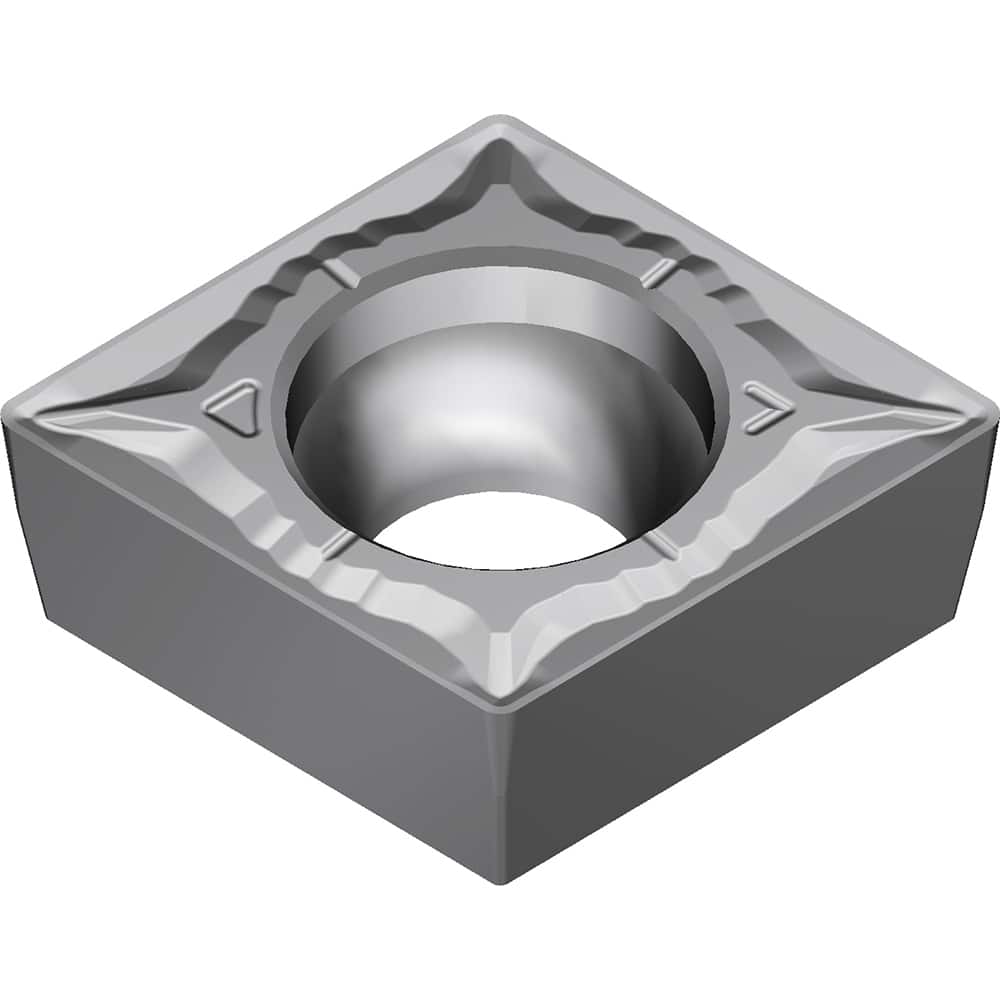

Sumitomo - CCMT32.52EGU AC8035P Carbide Turning Insert
Item #: 12070454
Brand: Sumitomo
Model #: 19T3DCN
Product Specifications
| Insert Style | CCMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3819 |
| Inscribed Circle (Inch) | 0.375 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | AC8035P |
| Coating | Absotech |
| Chip Breaker | EGU |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | CCMT09T308N-GU |
| Rake | Positive |
| Relief Angle | 7.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CCMT32.52EGU-AC8035P |
| Primary Workpiece Material | Steel |
| Included Angle | 80 |
