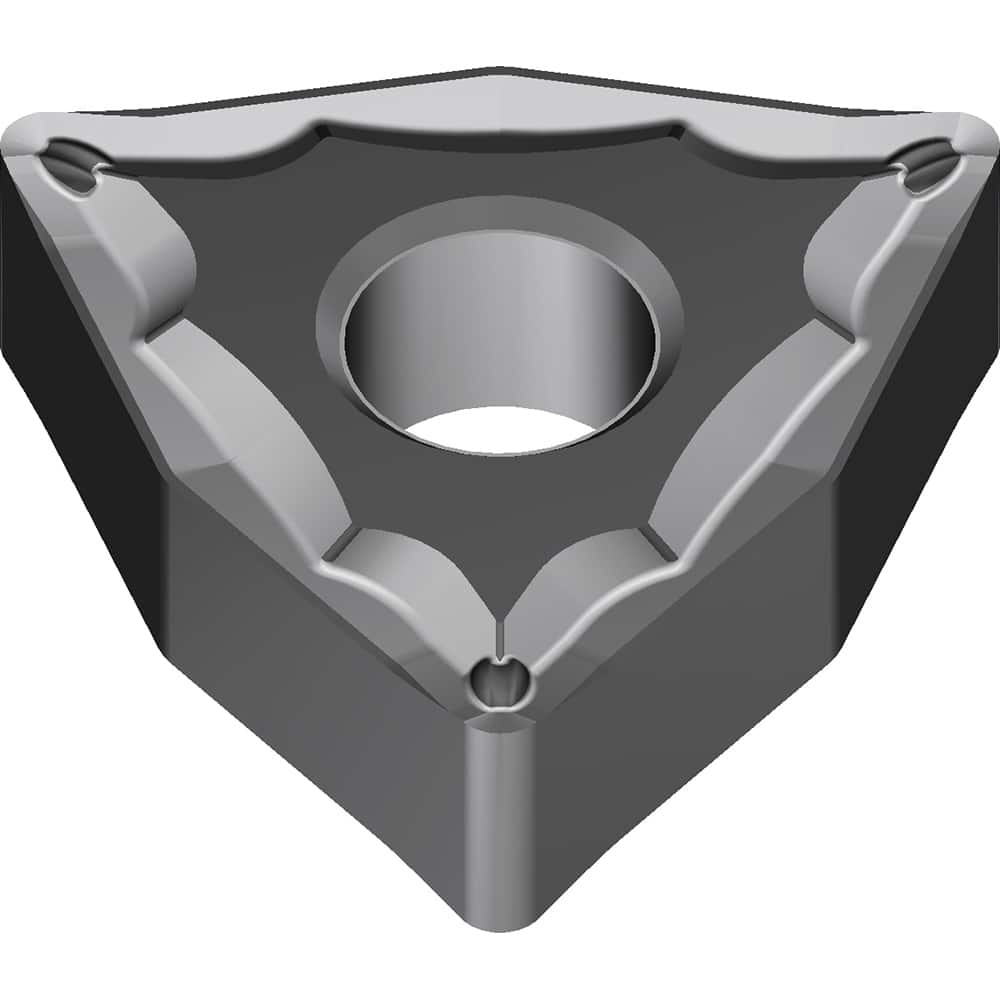

Sumitomo - WNMG32.52ESU AC8025P Carbide Turning Insert
Item #: 12070389
Brand: Sumitomo
Model #: 19P7BMX
Product Specifications
| Insert Style | WNMG |
| Insert Size | 32.52 |
| Material | Carbide |
| Length (Decimal Inch) | 0.2559 |
| Inscribed Circle (Inch) | 0.375 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | AC8025P |
| Coating | Absotech |
| Chip Breaker | ESU |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | WNMG06T308N-SU |
| Rake | Negative |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | WNMG32.52ESU-AC8025P |
| Primary Workpiece Material | Steel |
| Included Angle | 80 |
