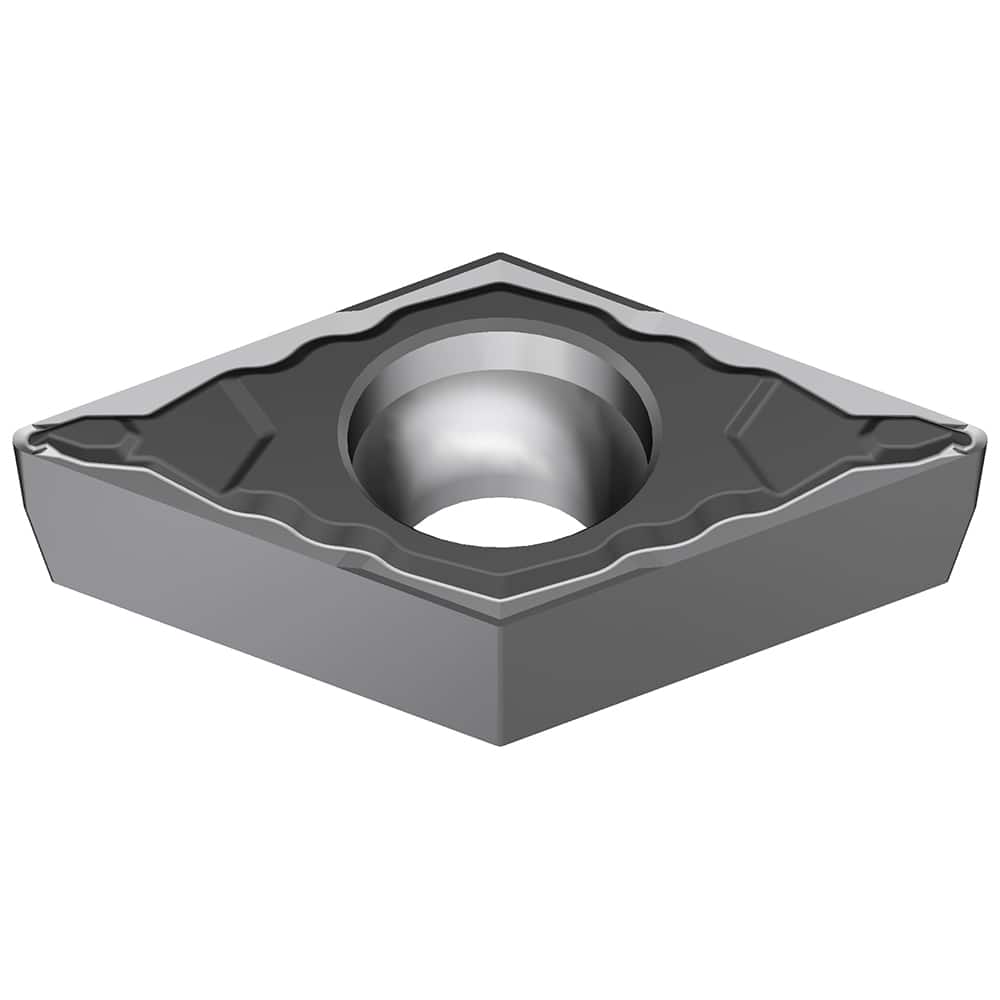

Sumitomo - DCMT32.50.5ELU AC8025P Carbide Turning Insert
Item #: 12068722
Brand: Sumitomo
Model #: 19P7BVH
Product Specifications
| Insert Style | DCMT |
| Insert Size | 32.50.5 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4567 |
| Inscribed Circle (Inch) | 0.375 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | AC8025P |
| Coating | Absotech |
| Chip Breaker | ELU |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | DCMT11T302N-LU |
| Rake | Positive |
| Relief Angle | 7.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DCMT32.50.5ELU-AC8025P |
| Primary Workpiece Material | Steel |
| Included Angle | 55 |
