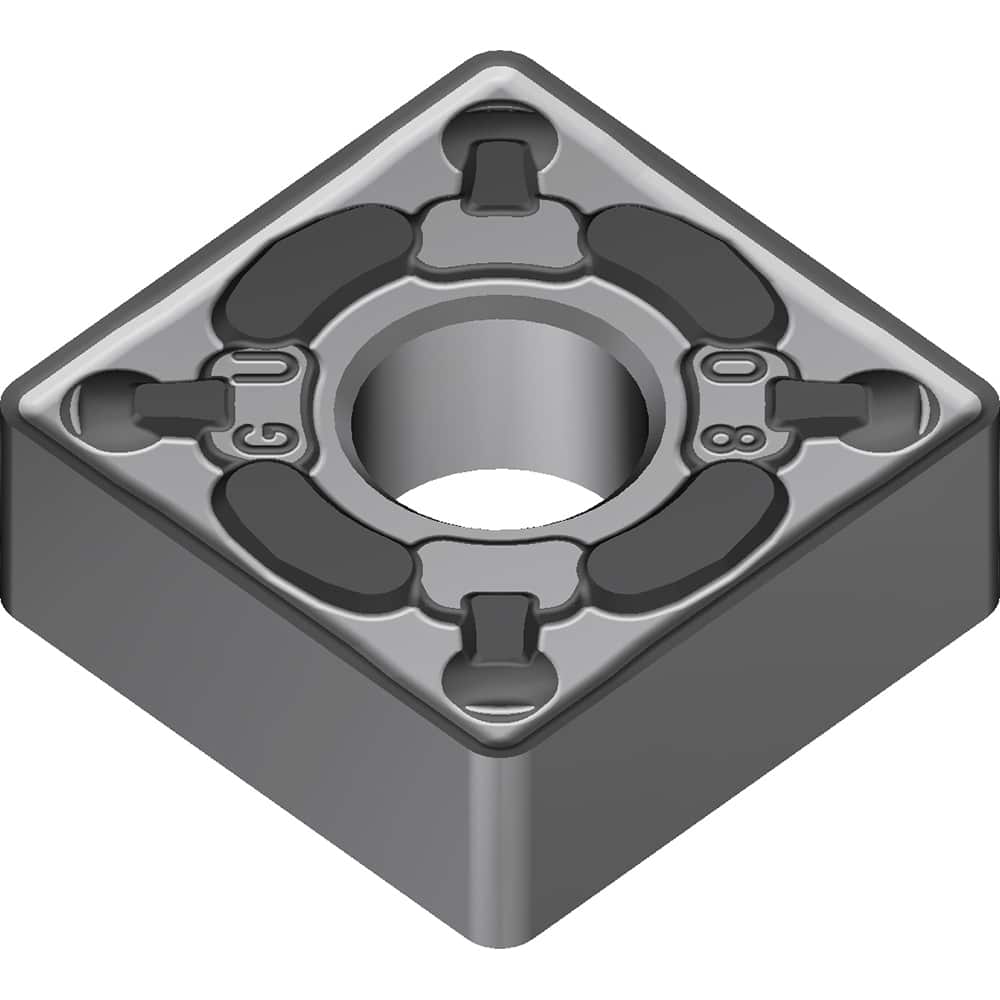

SNMG542EGU AC8025P Carbide Turning Insert Absotech Finish, 5/8″ Long, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 1/4″ Thick, 90° Included Angle, Series AC8000P
Item #: 12067849
Brand: Sumitomo
Model #: 19P7CSK
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 542 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8025P |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | AC8000P |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6250 |
| Primary Workpiece Material | Steel |
| Iso Code | SNMG150608N-GU |
| Manufacturers Catalog Number | SNMG542EGU-AC8025P |
| Chip Breaker | EGU |
| Coating/Finish | Absotech |
