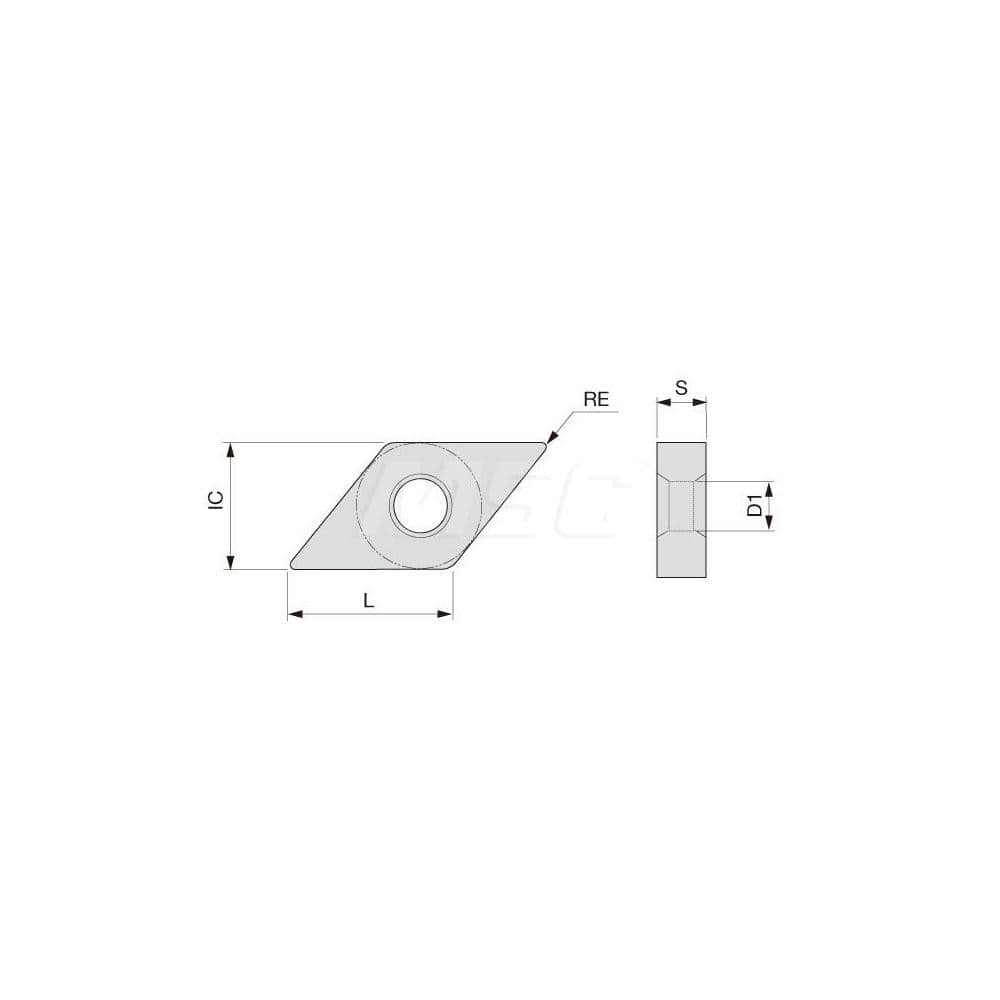

Turning Insert: DNMG432-27 T9225, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 55.0 ° N/A Diamond, Series DNMG
Item #: 12021143
Brand: Tungaloy
Model #: 6780762
Product Specifications
| Insert Style | DNMG |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T9225 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | DNMG43227T9225 |
| Iso Code | DNMG150408-27 T9225 |
| Chip Breaker | 27 |
| Coating/Finish | TiCN; TiN; Al2O3 |
