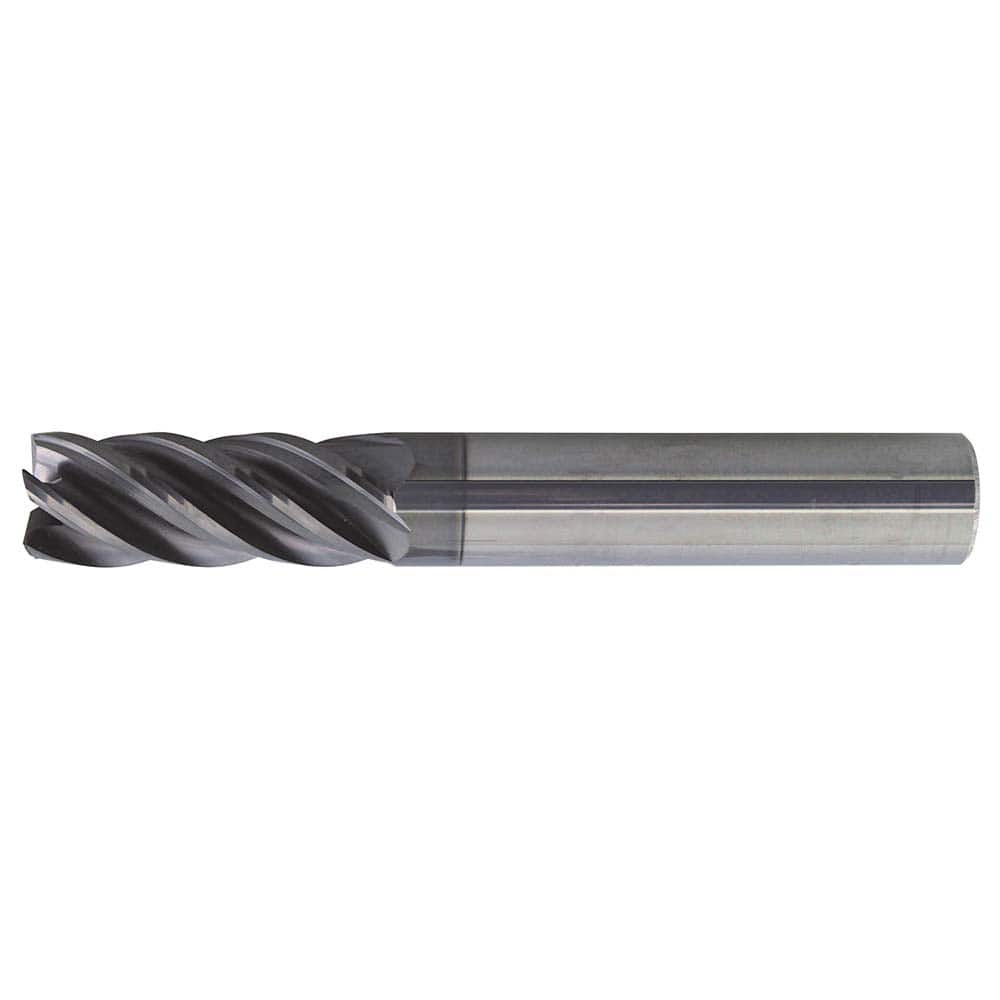

Square End Mill: 5/8'' Dia, 1-1/4'' LOC, 5/8'' Shank Dia, 3-1/2'' OAL, 5 Flutes, Solid Carbide Single End, PowerLayer Finish, Spiral Flute, 38 ° Helix, Centercutting, RH Cut, RH Flute, Series US556
Item #: 12015277
Brand: ProMax
Model #: US556179
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Finish/Coating | PowerLayer |
| Overall Length (Inch) | 3-1/2 |
| Helix Angle | 38 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.2500 - 1.5000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 3.5000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Length Type | Standard |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Series | US556 |
