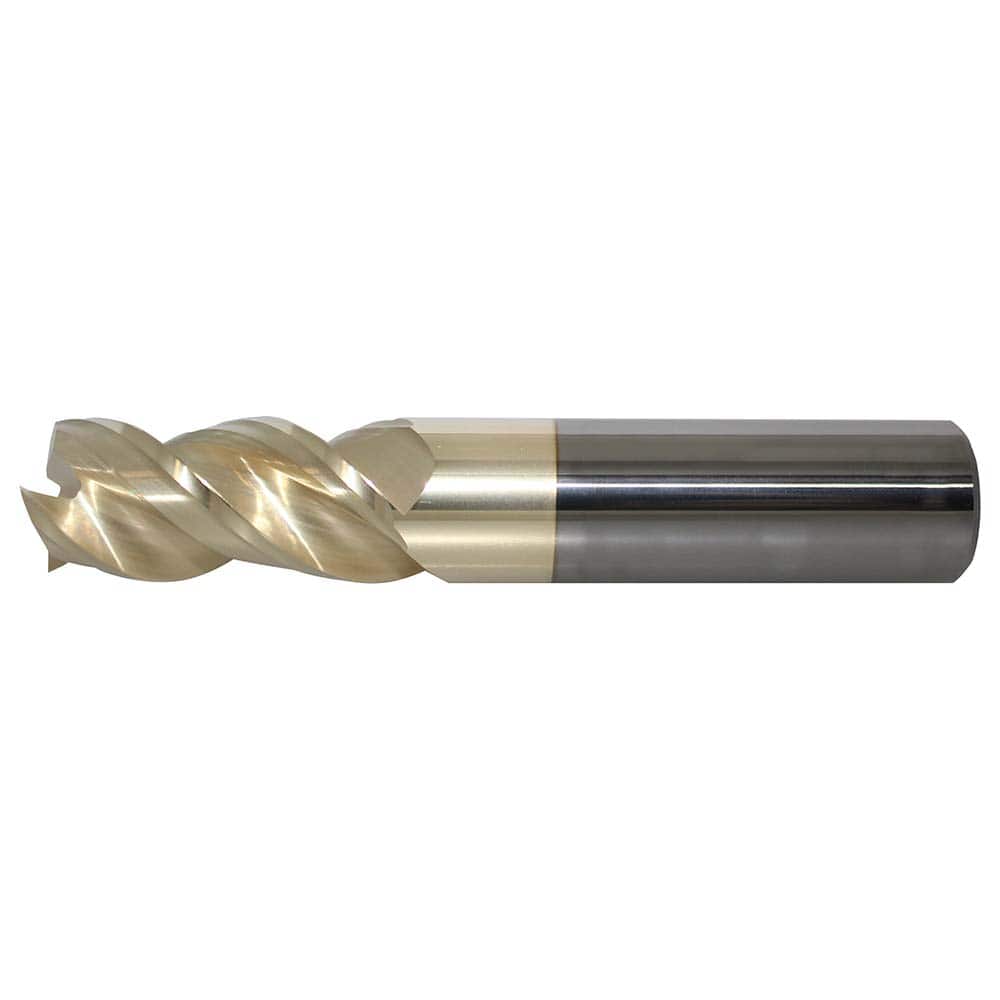

Square End Mill: 5/8'' Dia, 1-5/8'' LOC, 5/8'' Shank Dia, 4'' OAL, 3 Flutes, Solid Carbide Single End, ZrN Finish, Spiral Flute, Variable Helix, Centercutting, RH Cut, RH Flute, Series US556
Item #: 12015152
Brand: ProMax
Model #: US362250
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 1-5/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Finish/Coating | ZrN |
| Overall Length (Inch) | 4 |
| Helix Angle | 46/48 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 1.6250 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Length Type | Standard |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Series | US556 |
