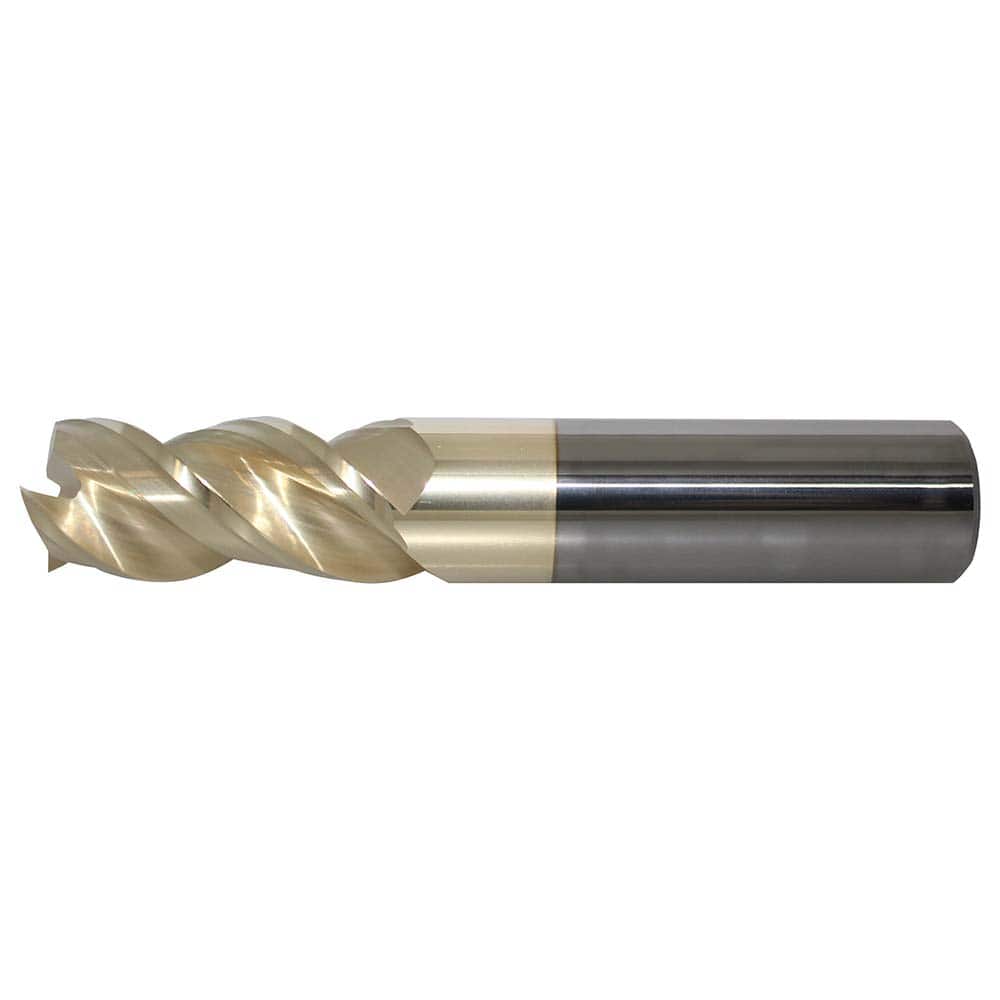

ProMax - 1/2" Diam, 5/8" LOC, 1/2" Shank Diam, 2-1/2" OAL, 3 Flute, Solid Carbide, Single End Square End Mill
Item #: 12015038
Brand: ProMax
Model #: US362122
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 5/8 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material | Solid Carbide |
| Finish/Coating | ZrN |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Single or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 42.5; 45; 47.5 |
| Variable Helix | Yes |
| Variable Index | Yes |
| Flute Type | Spiral |
| Length Type | Standard |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Material Grade | Micrograin |
| Minimum Helix Angle | 46 |
| Maximum Helix Angle | 48 |
| Chipbreaker | No |
| Extended Reach | No |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Series/List | US556 |
