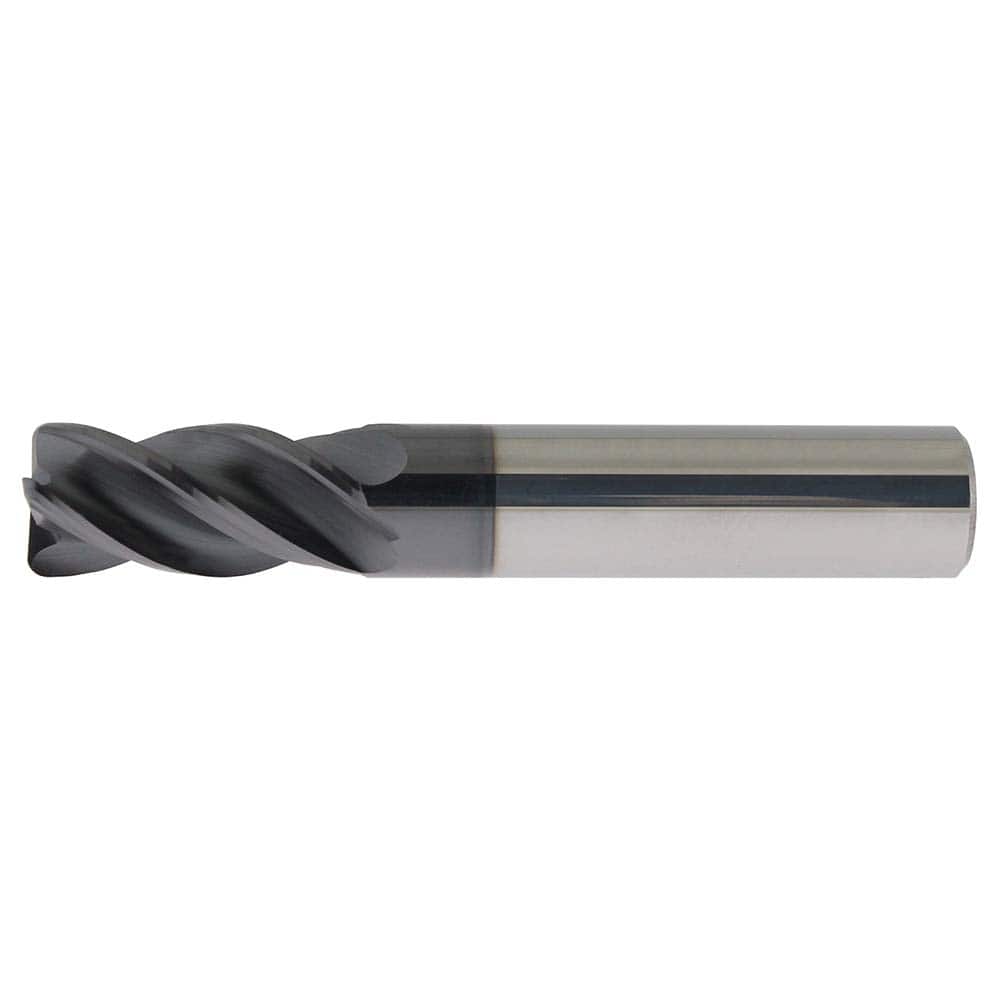

Corner Radius End Mill Head: 1/2″ Dia, 1-5/8″ LOC, 4 Flutes Solid Carbide, PowerLayer Coated, Series US007
Item #: 12014460
Brand: ProMax
Model #: US007145
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Length of Cut (Inch) | 1-5/8 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Single |
| Flute Type | Spiral |
| Shank Type | Cylindrical Shank |
| Centercutting | Yes |
| Shank Diameter (Inch) | 0.5000 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 38 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | US007 |
| Proprietary Coating Designation | PROMAX PowerLayer |
| Single Or Double End | Single |
| Manufacturers Catalog Number | US007145 |
| Coating/Finish | PowerLayer |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
