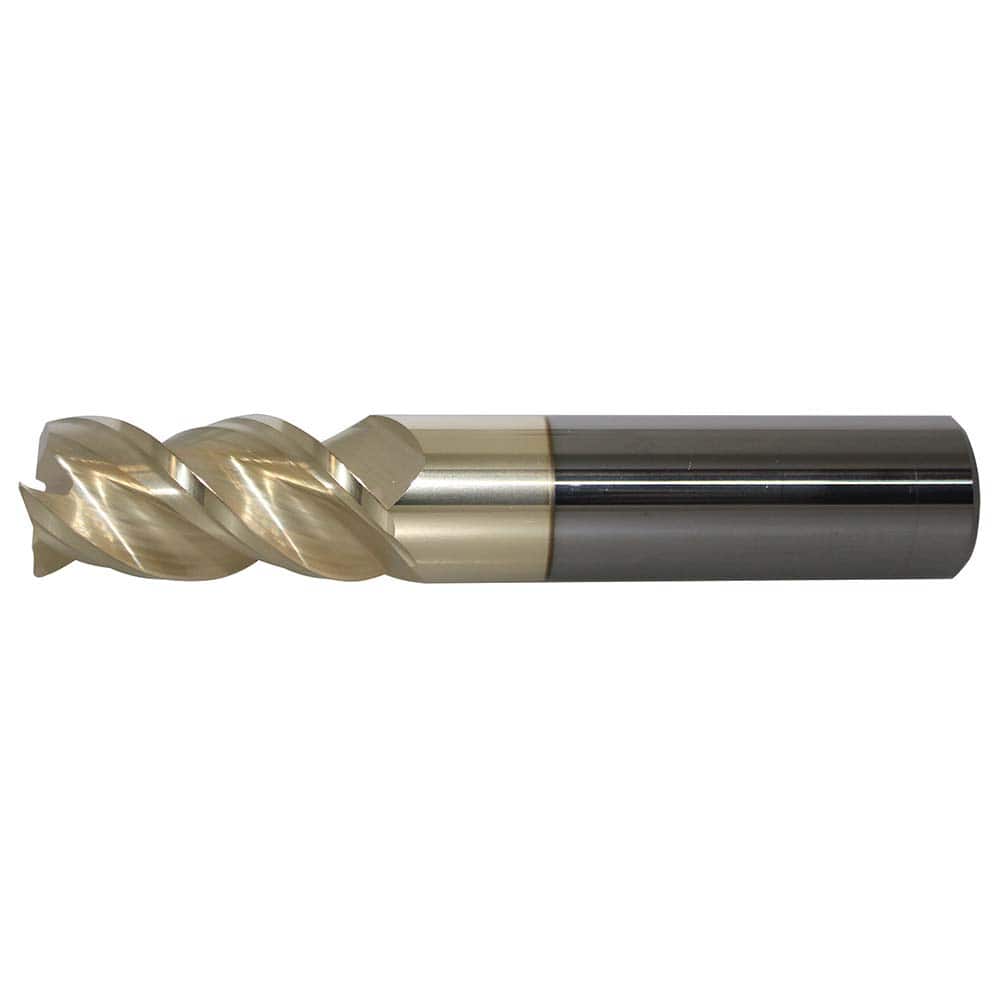

ProMax - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; End Type: Single ; Corner Radius (Inch): 0.0300 ; Number of Flutes: 3 ; Material: Solid Carbide
Item #: 12012399
Brand: ProMax
Model #: US362018
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; End Type: Single ; Corner Radius (Inch): 0.0300 ; Number of Flutes: 3 ; Material: Solid Carbide
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| End Type | Single |
| Corner Radius (Inch) | 0.0300 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | PowerLayer |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 0.1875 |
| Overall Length (Inch) | 3 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 42.5; 45; 47.5 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 43 |
| Maximum Helix Angle | 48 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Corner Radius Tolerance (Decimal Inch) | +/-0.001 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Extended Reach | No |
| Shank Type | Cylindrical Shank |
| Series/List | US362 |
| Chipbreaker | No |
