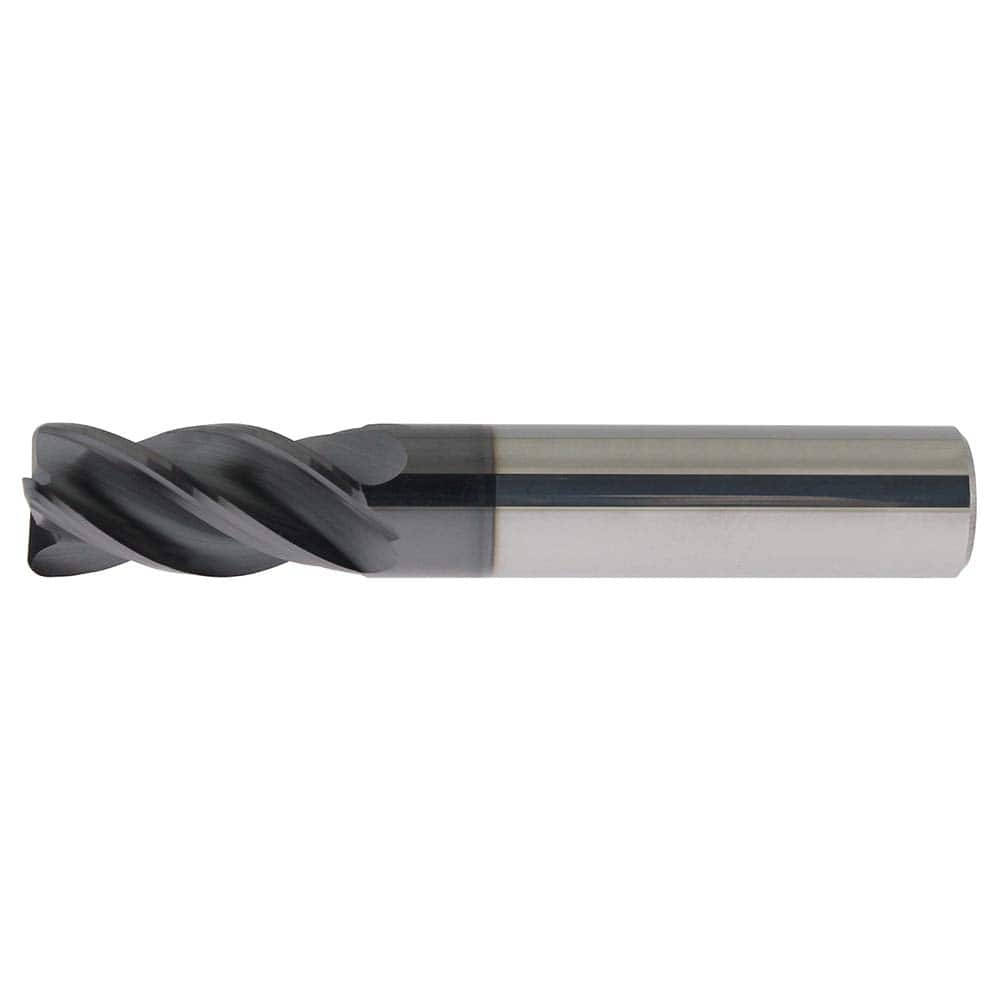

ProMax - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/4 ; Mill Diameter (Decimal Inch): 0.2500 ; End Type: Single ; Corner Radius (Inch): 0.0200 ; Number of Flutes: 4 ; Material: Solid Carbide
Item #: 12011458
Brand: ProMax
Model #: US007032
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/4 ; Mill Diameter (Decimal Inch): 0.2500 ; End Type: Single ; Corner Radius (Inch): 0.0200 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| End Type | Single |
| Corner Radius (Inch) | 0.0200 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | PowerLayer |
| Length of Cut (Inch) | 3/8 |
| Length of Cut (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 0.2500 |
| Overall Length (Inch) | 2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 35/38 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 38 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Corner Radius Tolerance (Decimal Inch) | +/-0.001 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Extended Reach | No |
| Shank Type | Cylindrical Shank |
| Series/List | US007 |
| Chipbreaker | No |
