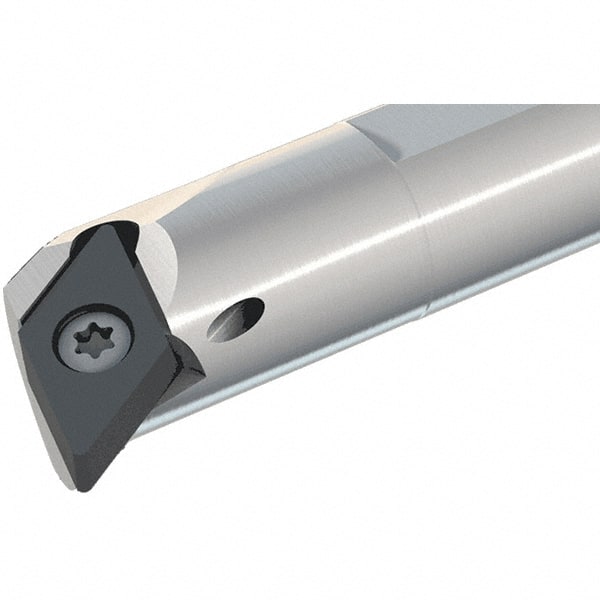

Iscar - Indexable Boring Bars Toolholder Style: E12Q SDXNR Series: Isoturn
Item #: 46665139
Brand: Iscar
Model #: 6888931
Product Specifications
Indexable Boring Bars; Toolholder Style: E12Q SDXNR ; Series: Isoturn ; Minimum Bore Diameter (mm): 16 ; Minimum Bore Diameter (Decimal Inch): 0.6299 ; Hand of Holder: Right Hand ; Maximum Bore Depth (mm): 72
| Toolholder Style | E12Q SDXNR |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 16 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 72 |
| Maximum Bore Depth (Decimal Inch) | 2.835 |
| Overall Length (mm) | 180 |
| Overall Length (Decimal Inch) | 7.086 |
| Shank Diameter (mm) | 12 |
| Shank Diameter (Decimal Inch) | 0.472 |
| Insert Compatibility | DNGP |
| Through Coolant | Yes |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Number of Inserts Included in Order | 0 |
