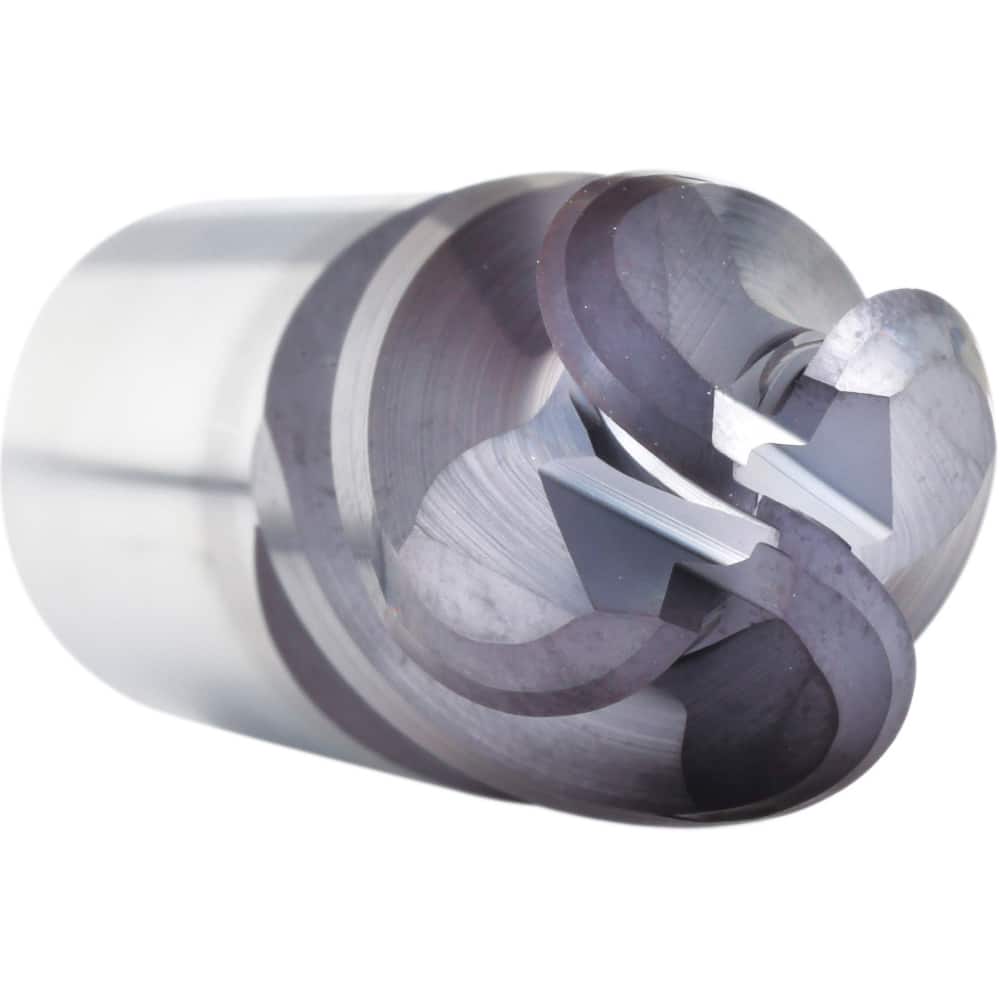

Ball End Mill: 0.1875″ Dia, 0.5625″ LOC, 4 Flute, Solid Carbide 2″ OAL, 3/16″ Shank Dia, 45 ° Helix, AlTiN Coated, Single End, Series XPB-NB
Item #: 11987880
Brand: Supermill
Model #: XPB187A
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Length of Cut (Inch) | 9/16 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| Helix Angle | 45 |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 0.4000 to 0.7000 |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Shank Diameter Tolerance | h6 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | XPB-NB |
| Flute Type | Spiral |
| TIR Maximum (Decimal Inch) | 0.0002 |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5625 |
| Manufacturers Catalog Number | 31502 |
