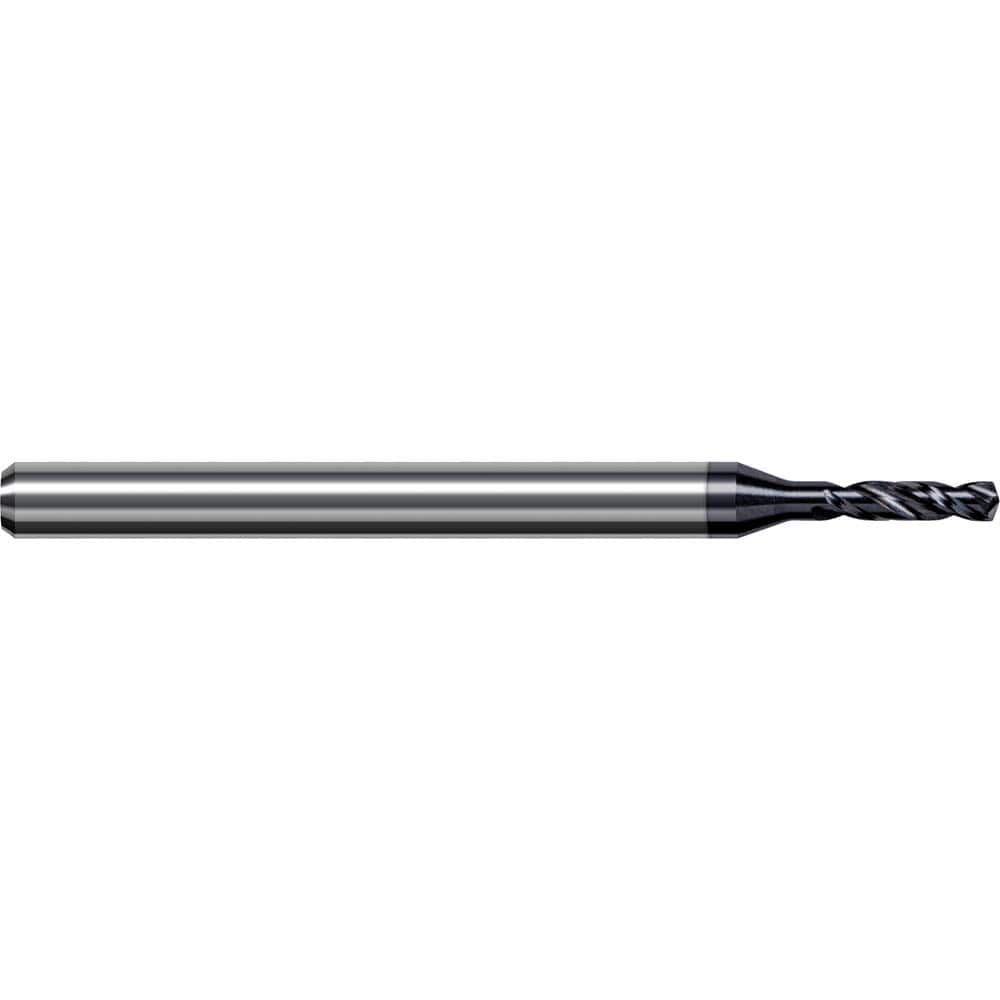

Jobber Length Drill Bit: 0.1875″ Dia, 140 °, Solid Carbide AlTiN Nano Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 11964921
Brand: Harvey Tool
Model #: CSG1875-C6
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Drill Bit Size (Inch) | 3/16 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN Nano |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 63.00 |
| Flute Length (mm) | 23.00 |
| Flute Length (Decimal Inch) | 0.9055 |
| Flute By Diameter Ratio | 3xD |
| Shank Diameter (mm) | 6.00 |
| Drill Bit Diameter Tolerance | h6 |
| Double Margin | Yes |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
