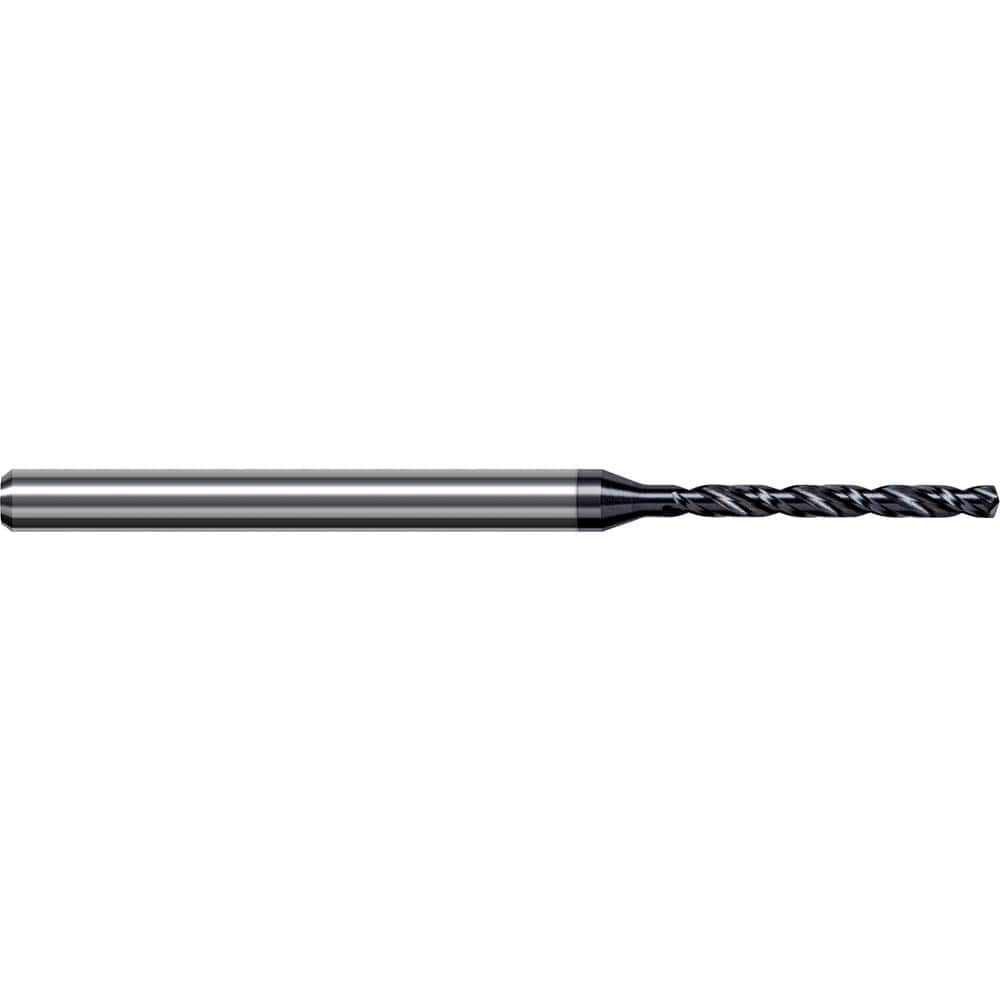

Jobber Length Drill Bit: 0.238″ Dia, 140 °, Solid Carbide AlTiN Nano Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 11886553
Brand: Harvey Tool
Model #: ARY2380-C6
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2380 |
| Drill Bit Size (Letter) | B |
| Drill Bit Size (mm) | 6.04 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN Nano |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 100.00 |
| Flute Length (mm) | 58.00 |
| Flute Length (Decimal Inch) | 2.2835 |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 8.00 |
| Drill Bit Diameter Tolerance | h6 |
| Double Margin | Yes |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
