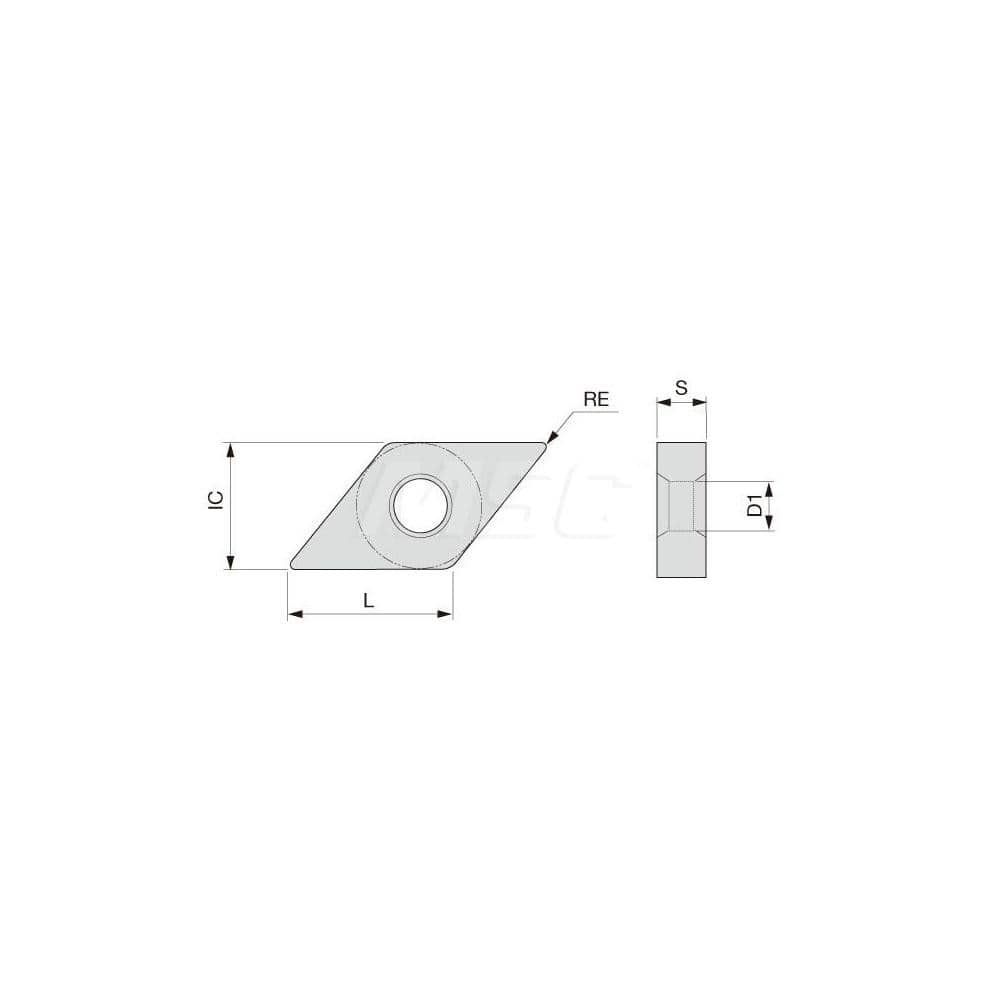

Turning Insert: DNMG442SH AH630, Solid Carbide TiAlN Finish, Neutral, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 55.0 ° N/A Diamond, Series DNMG
Item #: 11779998
Brand: Tungaloy
Model #: 6827522
Product Specifications
| Insert Style | DNMG |
| Insert Size Code | 442 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH630 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Ansi Code | DNMG442SHAH630 |
| Iso Code | DNMG150608-SH AH630 |
| Chip Breaker | SH |
| Coating/Finish | TiAlN |
