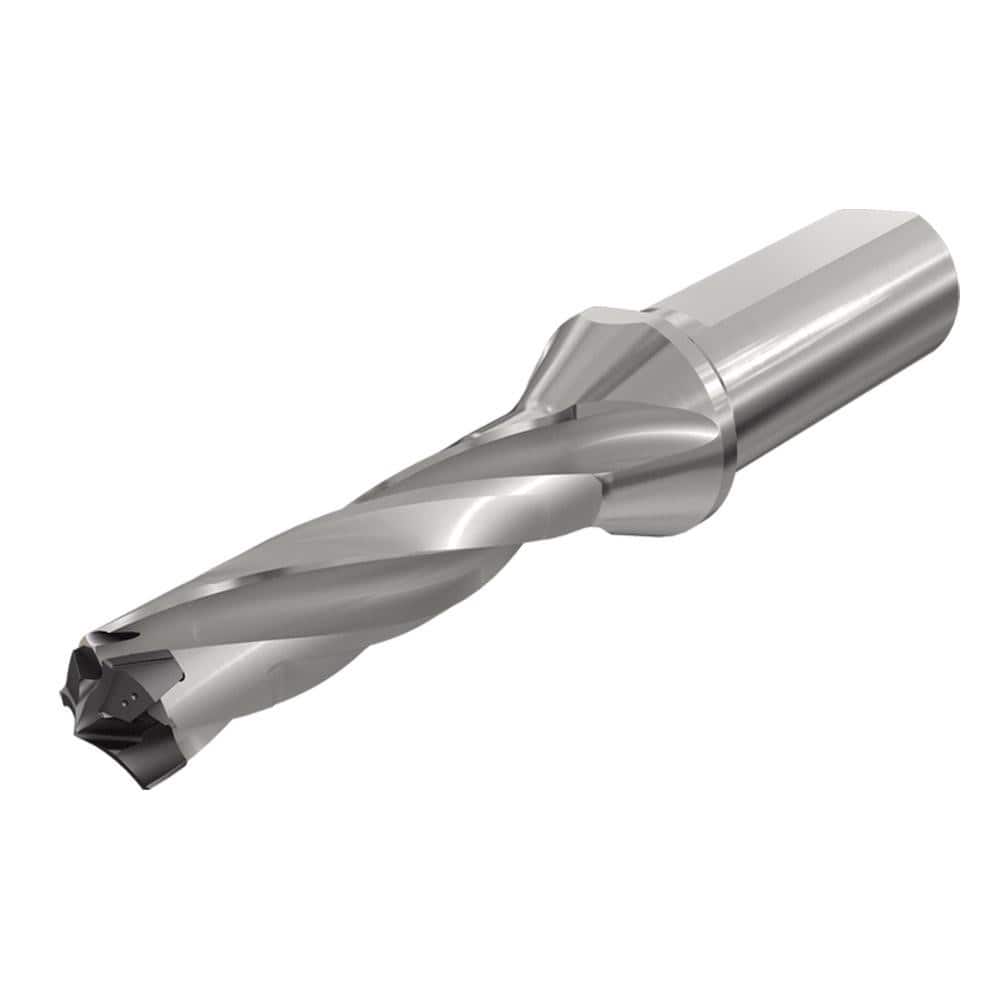

Replaceable Tip Drill: 0.709 to 0.744'' Drill Dia, 2.281″ Max Depth, 1'' Flatted Shank Uses H3P Inserts, 5.8″ OAL, Through Coolant
Item #: 11753324
Brand: Iscar
Model #: 3346969
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.7090 |
| Maximum Drill Diameter (Decimal Inch) | 0.7440 |
| Maximum Drill Depth (Fractional Inch) | 2-9/32 |
| Maximum Drill Depth (Decimal Inch) | 2.2810 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 18 |
| Overall Length (Decimal Inch) | 5.8000 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (Decimal Inch) | 2.2810 |
| Body Length (Decimal Inch) | 3.6000 |
| Shank Length (Decimal Inch) | 2.2020 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
