![Turning Insert [DELETE]](http://benchmarktooling.com/cdn/shop/products/1173515-21_8aaedd92-a3bb-4763-8d25-c4b8c91e8e79_1024x1024.jpg?v=1675161508)

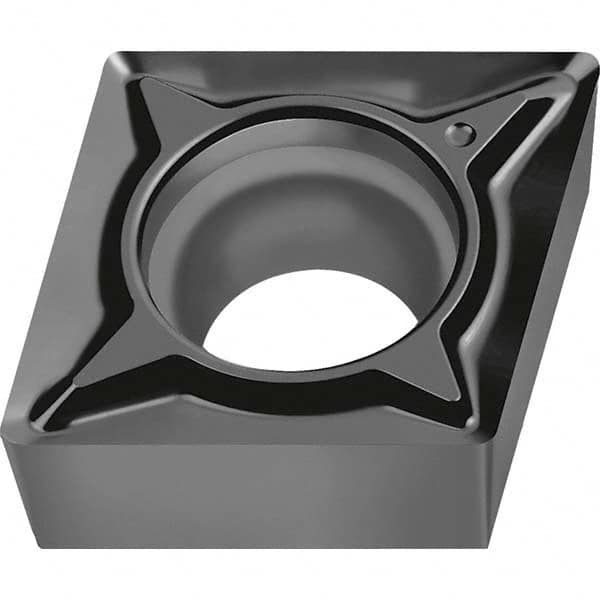

Turning Insert [DELETE]
Item #: 11735156
Brand: Walter
Model #: 7499354
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 09T304 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Manufacturer Grade | WSM01 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCGT-FM2 |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Superalloy; Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Steel |
| Secondary Workpiece Material Code | P; H; N |
| Ansi Code | CCGT3(2.5)1FM2WSM01 |
| Iso Code | CCGT09T304-FM2 WSM01 |
| Standards | ISO; ANSI |
| Chip Breaker | FM |
| Coating/Finish | Coated |
