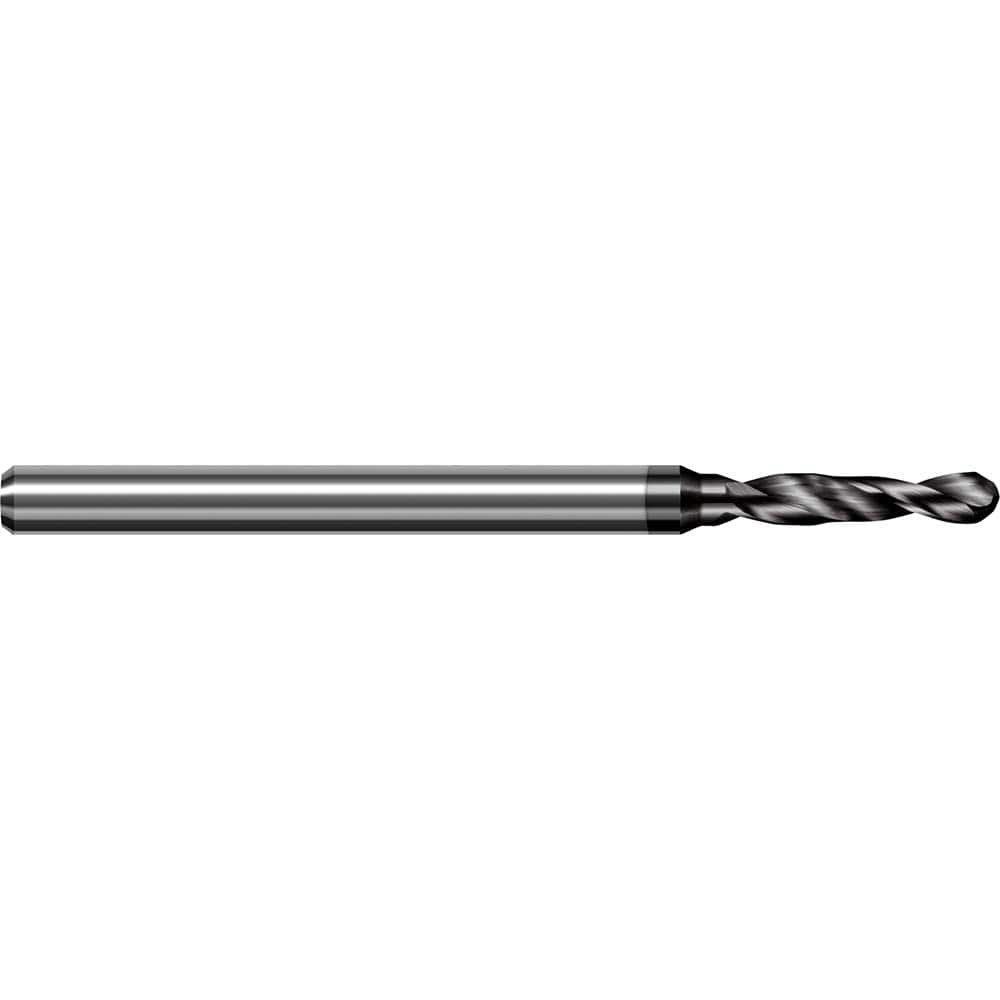

Jobber Length Drill Bit: 0.2344″ Dia, 130 °, Solid Carbide Amorphous Diamond Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 11729928
Brand: Harvey Tool
Model #: DDA2343-C4
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2344 |
| Drill Bit Size (Inch) | 15/64 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Amorphous Diamond |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 100.00 |
| Flute Length (mm) | 40.00 |
| Flute Length (Decimal Inch) | 1.5748 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Drill Bit Diameter Tolerance | h6 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
