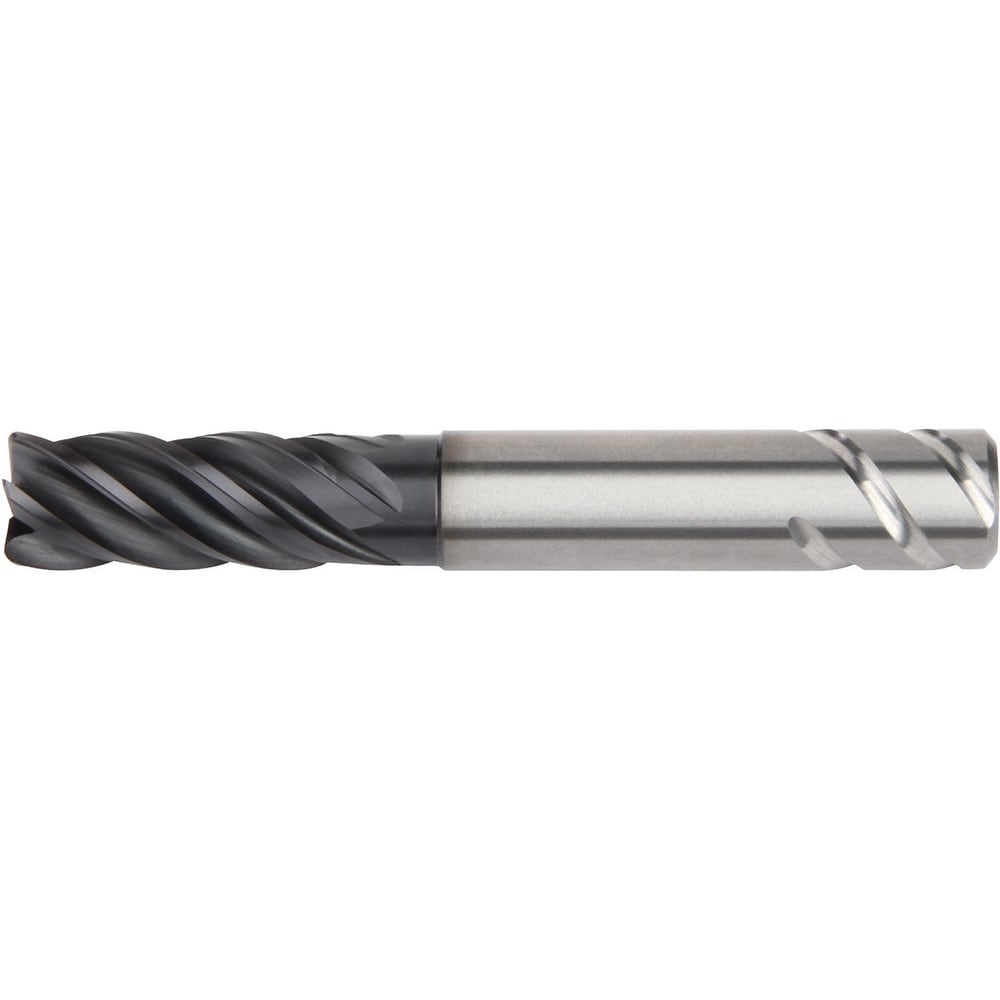

Square End Mill: 1/2" Dia, 5/8" LOC, 5 Flute, Solid Carbide
Item #: 34040006
Brand: Widia
Model #: 6168953
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; M |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Coating/Finish | WS15PE |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | WS15PE |
| Length Type | Regular |
| Neck Length (Decimal Inch) | 0.6250 |
| Neck Diameter (Decimal Inch) | 0.5000 |
| Neck Diameter (mm) | 11.94 |
| Reach Length (Inch) | 2-1/4 |
| Reach Length (Decimal Inch) | 2.2500 |
| Series | 5VNE |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
