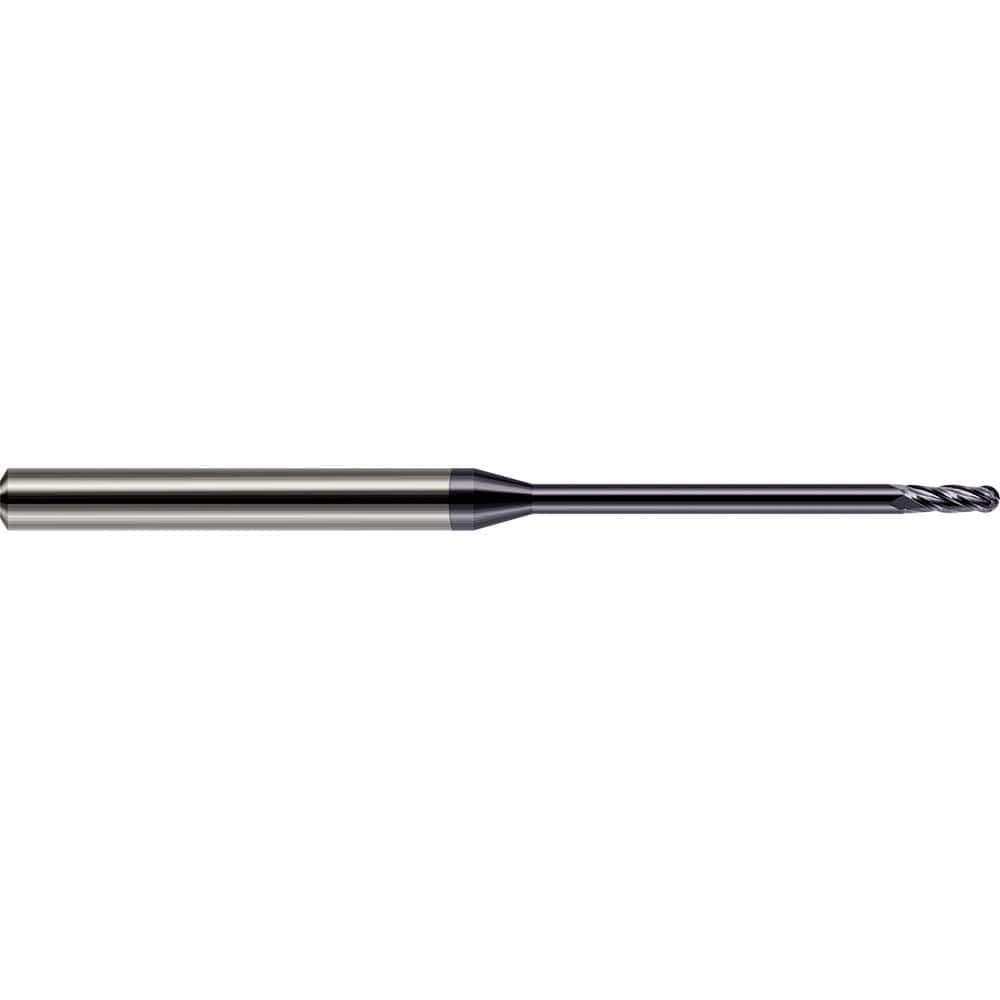

Harvey Tool - Ball End Mills; Mill Diameter (Inch): 5/64 ; Mill Diameter (Decimal Inch): 0.0780 ; Number of Flutes: 4 ; Length of Cut (Inch): 15/64 ; Length of Cut (Decimal Inch): 0.2340 ; Material: Solid Carbide
Item #: 11707619
Brand: Harvey Tool
Model #: 861278-C3
Product Specifications
Ball End Mills; Mill Diameter (Inch): 5/64 ; Mill Diameter (Decimal Inch): 0.0780 ; Number of Flutes: 4 ; Length of Cut (Inch): 15/64 ; Length of Cut (Decimal Inch): 0.2340 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/64 |
| Mill Diameter (Decimal Inch) | 0.0780 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 15/64 |
| Length of Cut (Decimal Inch) | 0.2340 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | AlTiN |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Helix | No |
| Reach Length (Inch) | 1-3/16 |
| Reach Length (Decimal Inch) | 1.1870 |
| Series/List | Miniature End Mills - Ball - Long Reach, Standard Flute |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
