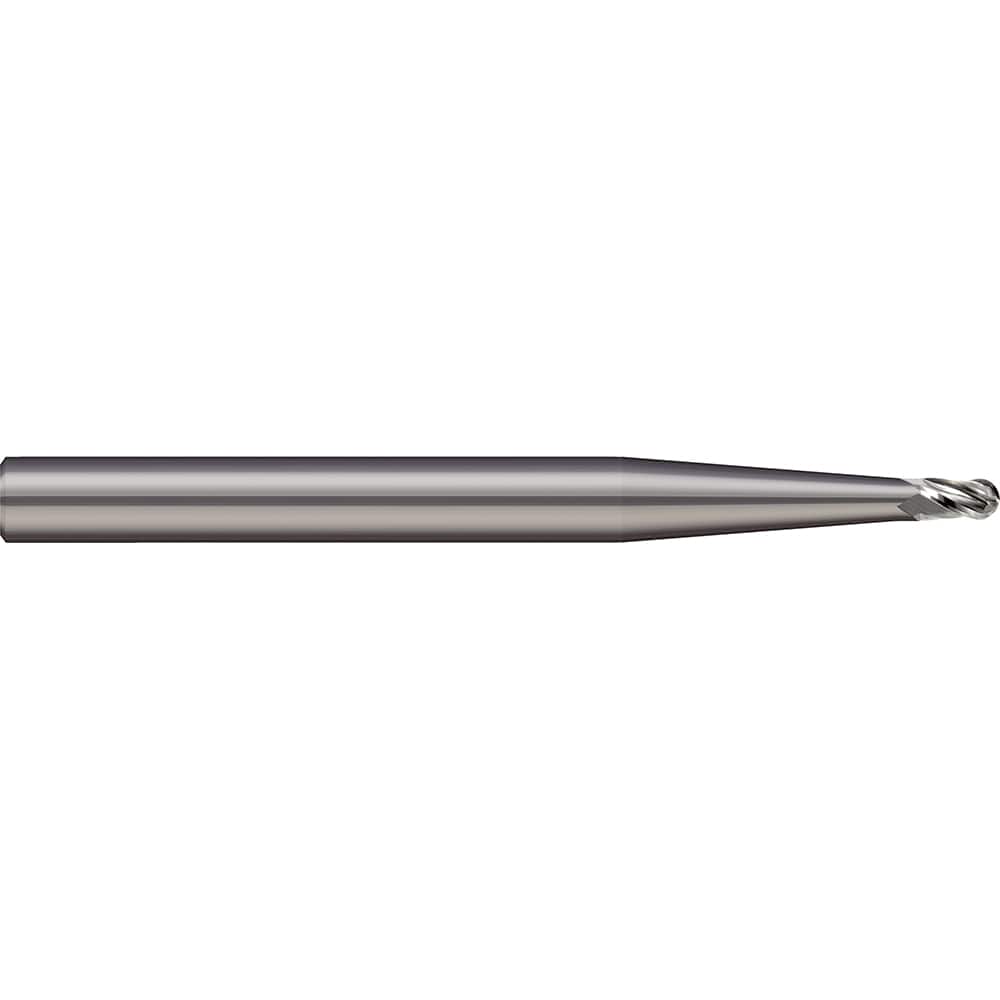

Ball End Mill: 0.1875″ Dia, 0.625″ LOC, 4 Flute, Solid Carbide 2″ OAL, 3/16″ Shank Dia, 30 ° Helix, Uncoated, Single End
Item #: 11684636
Brand: Micro 100
Model #: BEM-187-04
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Length of Cut (Inch) | 5/8 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Length Of Cut Range (Decimal Inch) | 0.4000 to 0.7000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Additional Information | End Mills - Ball - 2, 3, 4 Flute - Stub & Standard |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
