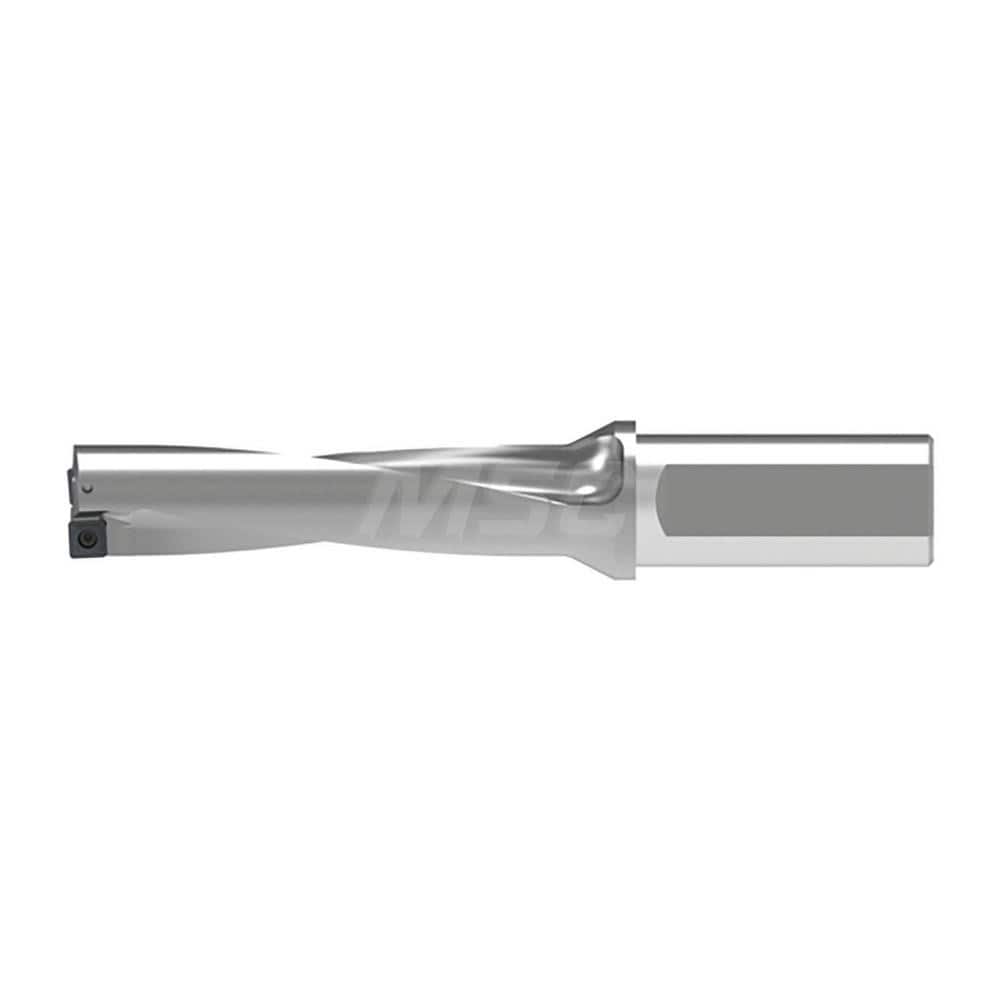

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 0.9370; Drill Diameter (Inch): 15/16; Maximum Drill Depth (Decimal Inch): 3.7800; Shank Type: Weldon; Shank Diameter (Inch): 1-1/4; Drill Diameter Range (Decimal Inch): 0.7500 to 1
Item #: 11639911
Brand: Komet
Model #: 1587423801
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 0.9370 |
| Drill Diameter (Inch) | 15/16 |
| Maximum Drill Depth (Decimal Inch) | 3.7800 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 15874 |
| Flute Length (Decimal Inch) | 3.7800 |
| Body Length (Decimal Inch) | 4.5670 |
| Shank Length (Decimal Inch) | 3.2500 |
| Overall Length/Projection (Decimal Inch) | 7.8170 |
| Collar Diameter (Decimal Inch) | 1.5400 |
| Extension From Holder (Inch) | 4.5670 |
| Coolant Through | Yes |
