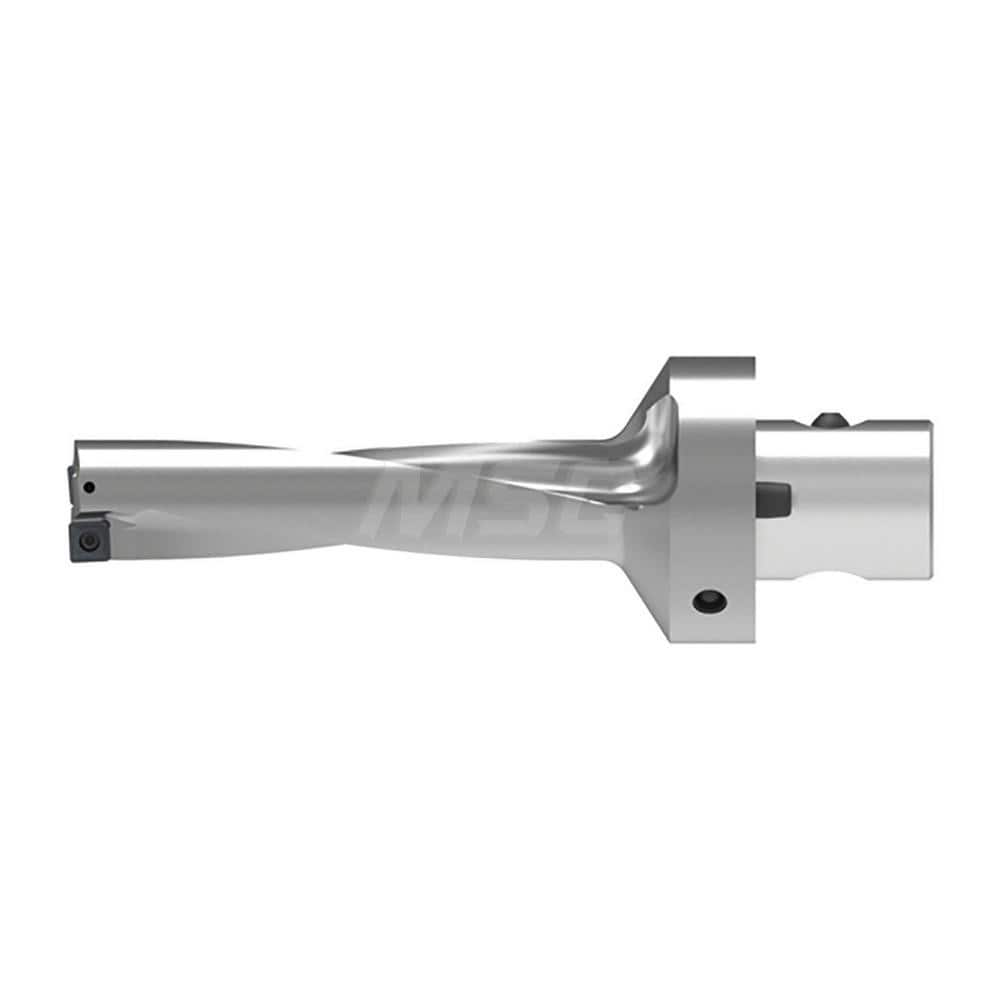

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 0.9449; Drill Diameter (mm): 24.00; Maximum Drill Depth (mm): 96.00; Shank Type: Modular Connection; Shank Diameter (mm): 28.00; Drill Diameter Range (Decimal Inch): 0.7500 to 1.00
Item #: 11639507
Brand: Komet
Model #: 1087424095
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 0.9449 |
| Drill Diameter (mm) | 24.00 |
| Maximum Drill Depth (mm) | 96.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 28.00 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 10874 |
| Flute Length (mm) | 96.00 |
| Body Length | 128.00 |
| Shank Length (mm) | 31.00 |
| Modular Connection Size | ABS 50 |
| Overall Length/Projection (mm) | 159.00 |
| Collar Diameter (mm) | 50.00 |
| Coolant Through | Yes |
