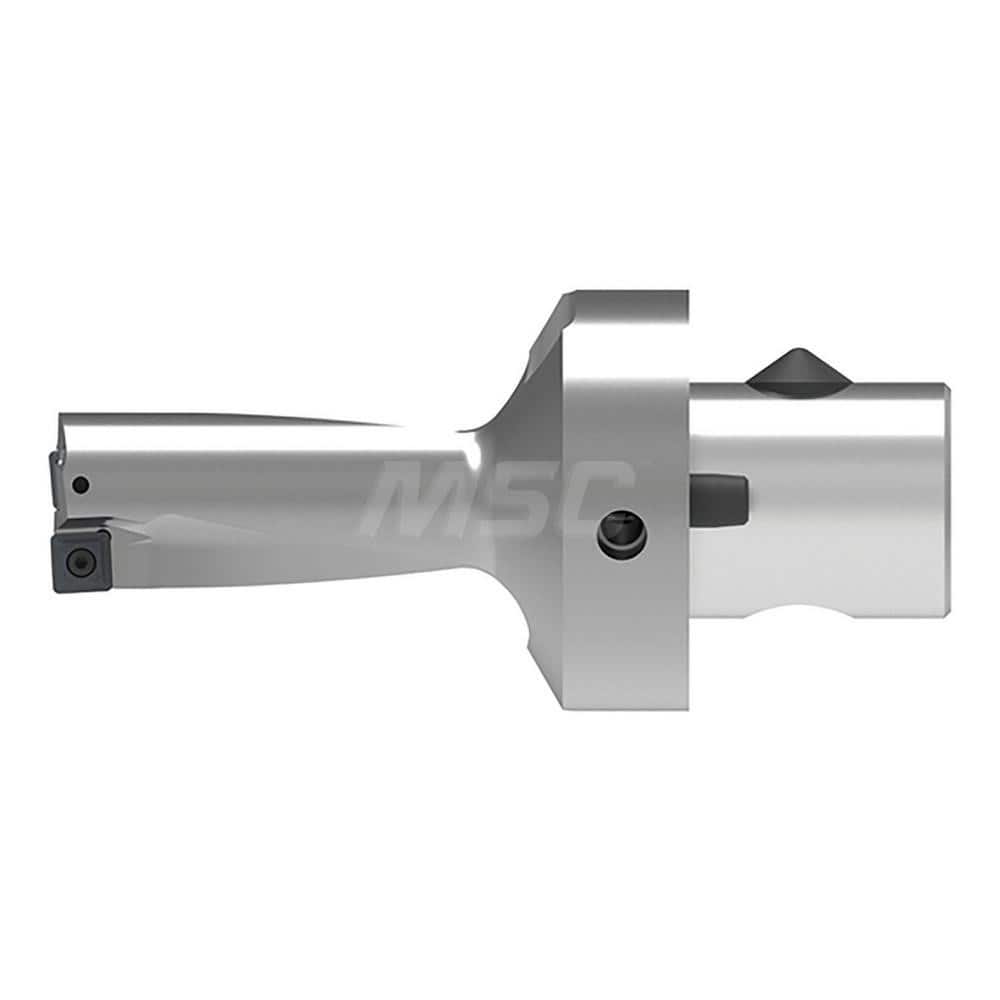

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 1.3780; Drill Diameter (mm): 35.00; Maximum Drill Depth (mm): 70.00; Shank Type: Modular Connection; Shank Diameter (mm): 34.00; Drill Diameter Range (Decimal Inch): 1.3000 to 1.50
Item #: 11639499
Brand: Komet
Model #: 1087235096
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 1.3780 |
| Drill Diameter (mm) | 35.00 |
| Maximum Drill Depth (mm) | 70.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 34.00 |
| Drill Diameter Range (Decimal Inch) | 1.3000 to 1.5000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 2xD |
| Series | 10872 |
| Flute Length (mm) | 70.00 |
| Body Length | 111.00 |
| Shank Length (mm) | 38.00 |
| Modular Connection Size | ABS 63 |
| Overall Length/Projection (mm) | 149.00 |
| Collar Diameter (mm) | 63.00 |
| Coolant Through | Yes |
