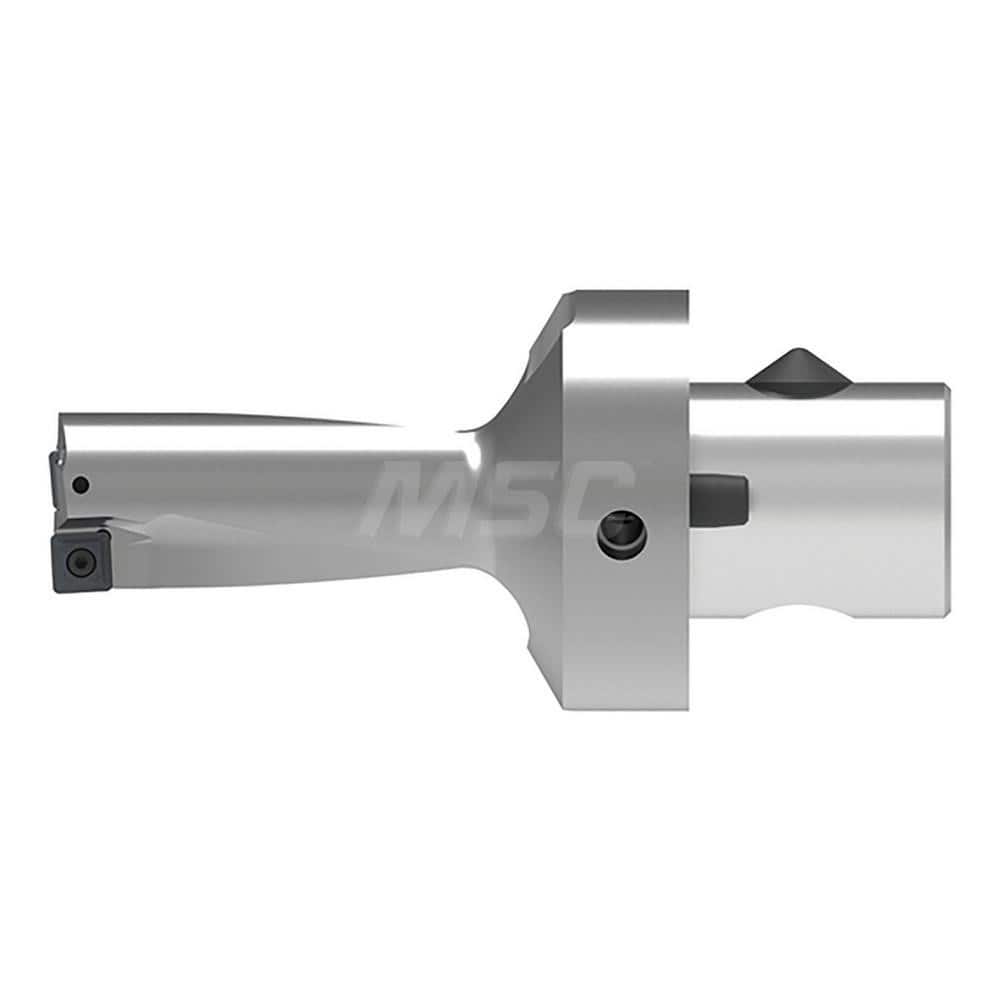

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 1.5354; Drill Diameter (mm): 39.00; Maximum Drill Depth (mm): 78.00; Shank Type: Modular Connection; Shank Diameter (mm): 34.00; Drill Diameter Range (Decimal Inch): 1.5000 to 2.00
Item #: 11637584
Brand: Komet
Model #: 1087239096
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 1.5354 |
| Drill Diameter (mm) | 39.00 |
| Maximum Drill Depth (mm) | 78.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 34.00 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 2xD |
| Series | 10872 |
| Flute Length (mm) | 78.00 |
| Body Length | 121.00 |
| Shank Length (mm) | 38.00 |
| Modular Connection Size | ABS 63 |
| Overall Length/Projection (mm) | 159.00 |
| Collar Diameter (mm) | 63.00 |
| Coolant Through | Yes |
