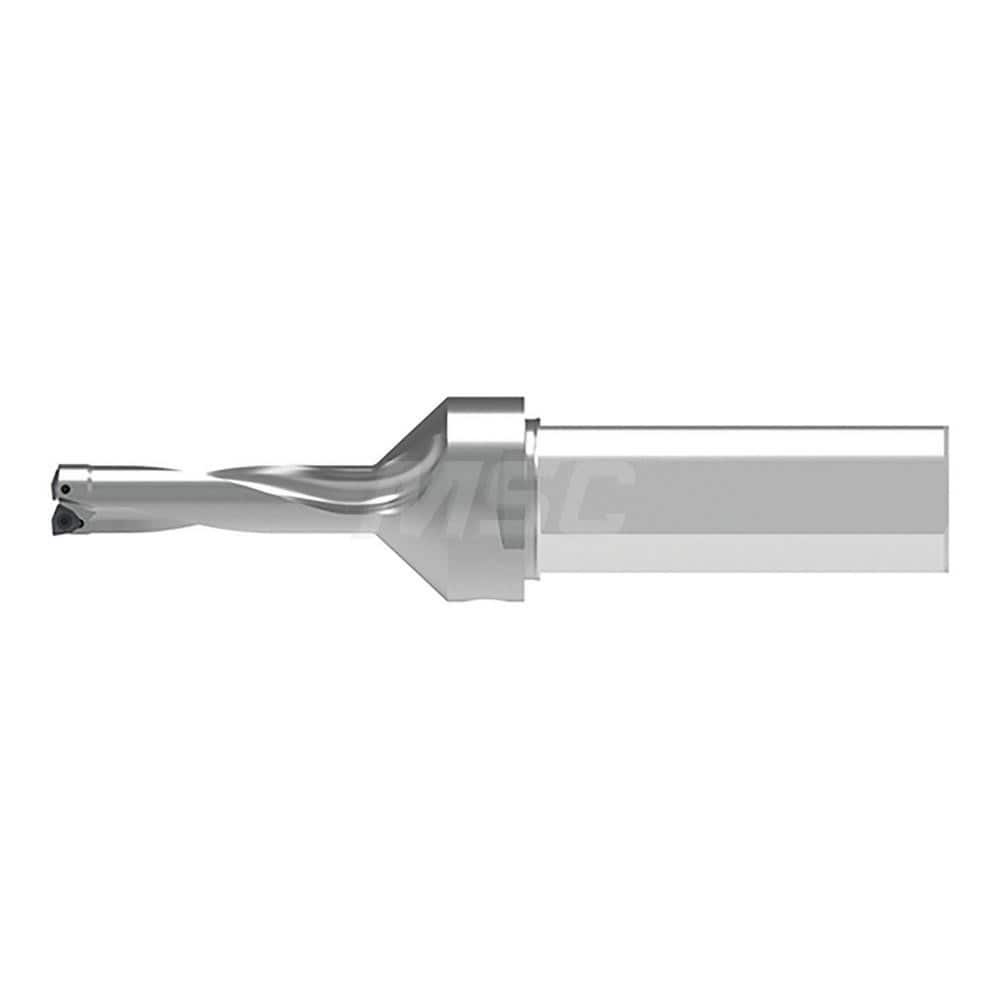

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 0.6560; Drill Diameter (Inch): 21/32; Maximum Drill Depth (Decimal Inch): 2.6240; Shank Type: Weldon; Shank Diameter (Inch): 1-1/4; Drill Diameter Range (Decimal Inch): 0.0000 to 0
Item #: 11635844
Brand: Komet
Model #: 1589416701
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 0.6560 |
| Drill Diameter (Inch) | 21/32 |
| Maximum Drill Depth (Decimal Inch) | 2.6240 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 15894 |
| Flute Length (Decimal Inch) | 2.6240 |
| Body Length (Decimal Inch) | 4.0020 |
| Shank Length (Decimal Inch) | 3.2500 |
| Overall Length/Projection (Decimal Inch) | 7.2520 |
| Collar Diameter (Decimal Inch) | 1.5750 |
| Extension From Holder (Inch) | 4.0020 |
| Coolant Through | Yes |
