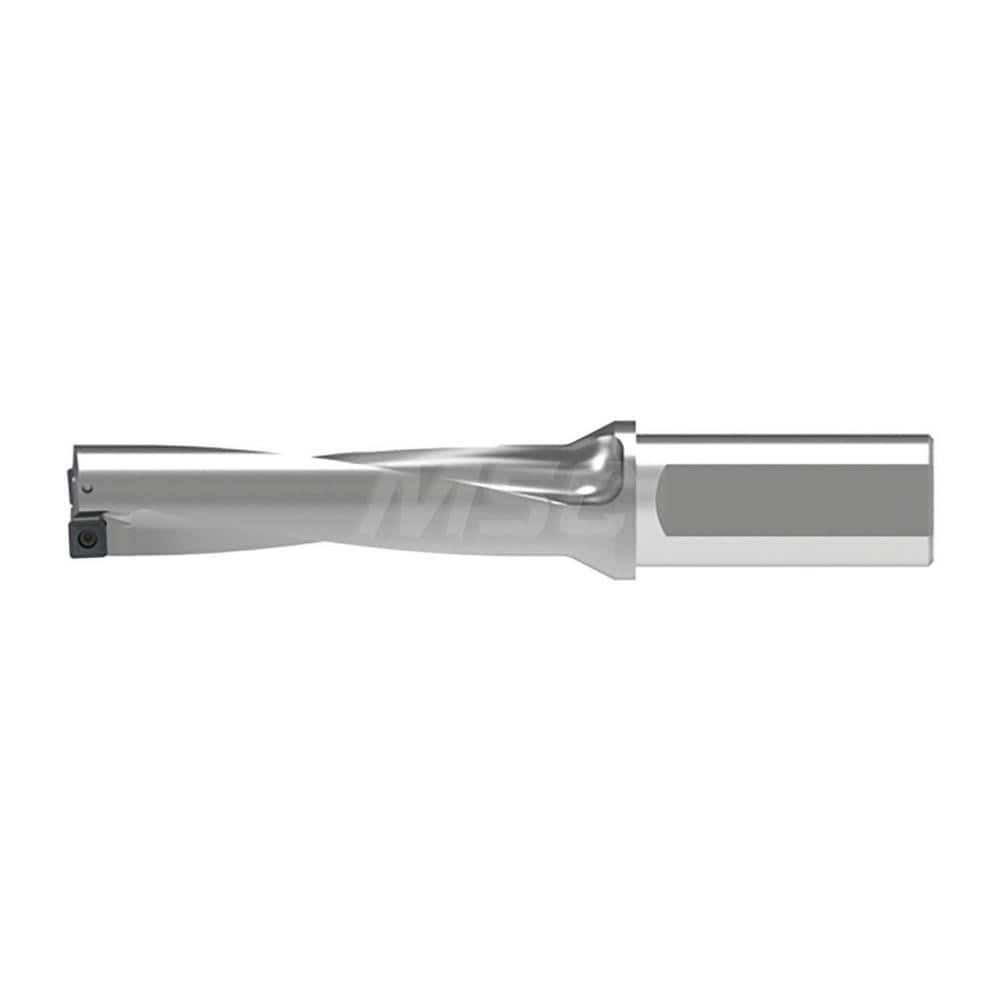

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 0.9252; Drill Diameter (mm): 23.50; Maximum Drill Depth (mm): 96.00; Shank Type: Weldon; Shank Diameter (mm): 32.00; Drill Diameter Range (Decimal Inch): 0.7500 to 1.0000; Cutting
Item #: 11635257
Brand: Komet
Model #: 1087423503
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 0.9252 |
| Drill Diameter (mm) | 23.50 |
| Maximum Drill Depth (mm) | 96.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 10874 |
| Flute Length (mm) | 96.00 |
| Body Length | 116.00 |
| Shank Length (mm) | 60.00 |
| Overall Length/Projection (mm) | 176.00 |
| Collar Diameter (mm) | 39.00 |
| Coolant Through | Yes |
