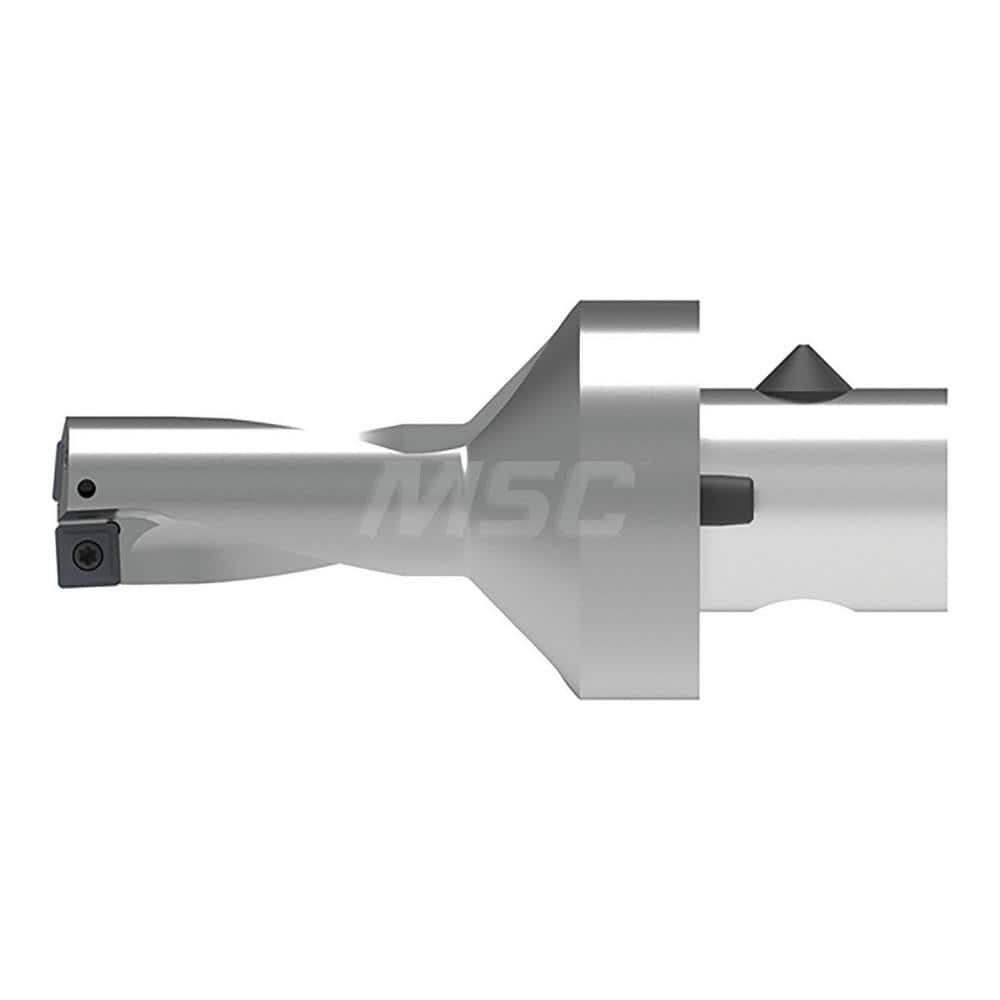

Indexable Insert Drills; Drill Style: KUBQ; Drill Diameter (Decimal Inch): 0.9680; Drill Diameter (Inch): 31/32; Maximum Drill Depth (Decimal Inch): 1.9690; Shank Type: Modular Connection; Shank Diameter (mm): 28.00; Drill Diameter Range (Decimal Inch): 0
Item #: 11633773
Brand: Komet
Model #: 1587924695
Product Specifications
| Drill Style | KUBQ |
| Drill Diameter (Decimal Inch) | 0.9680 |
| Drill Diameter (Inch) | 31/32 |
| Maximum Drill Depth (Decimal Inch) | 1.9690 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 28.00 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOEX |
| Drill Depth by Diameter Ratio | 2xD |
| Series | 15879 |
| Flute Length (Decimal Inch) | 1.9690 |
| Body Length (Decimal Inch) | 3.3460 |
| Shank Length (Decimal Inch) | 1.2200 |
| Modular Connection Size | ABS 50 |
| Overall Length/Projection (Decimal Inch) | 4.5660 |
| Collar Diameter (Decimal Inch) | 1.9690 |
| Extension From Holder (Inch) | 3.3460 |
| Coolant Through | Yes |
