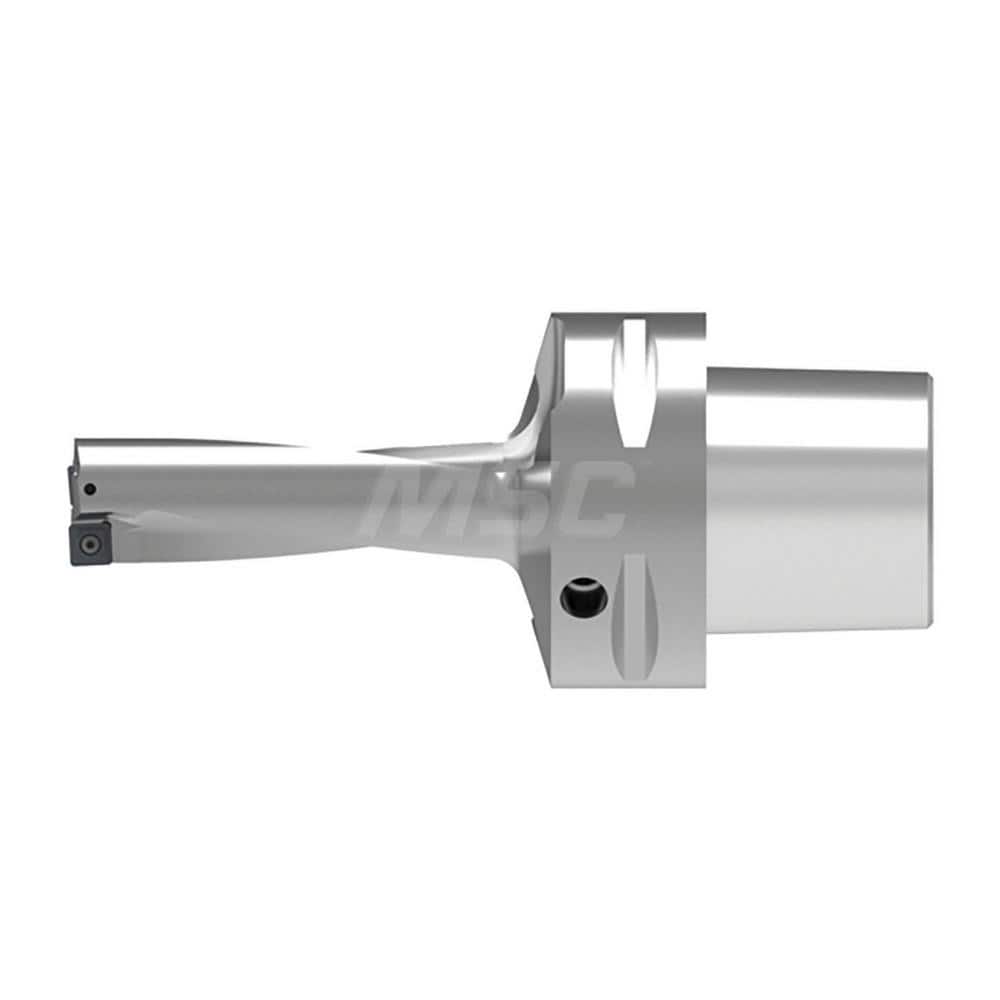

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 0.8465; Drill Diameter (mm): 21.50; Maximum Drill Depth (mm): 66.00; Shank Type: Modular Connection; Drill Diameter Range (Decimal Inch): 0.7500 to 1.0000; Cutting Direction: Right
Item #: 11633443
Brand: Komet
Model #: 1087321556
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 0.8465 |
| Drill Diameter (mm) | 21.50 |
| Maximum Drill Depth (mm) | 66.00 |
| Shank Type | Modular Connection |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 3xD |
| Series | 10873 |
| Flute Length (mm) | 66.00 |
| Body Length | 107.00 |
| Shank Length (mm) | 38.00 |
| Modular Connection Size | PSC63 |
| Overall Length/Projection (mm) | 145.00 |
| Collar Diameter (mm) | 63.00 |
| Coolant Through | Yes |
