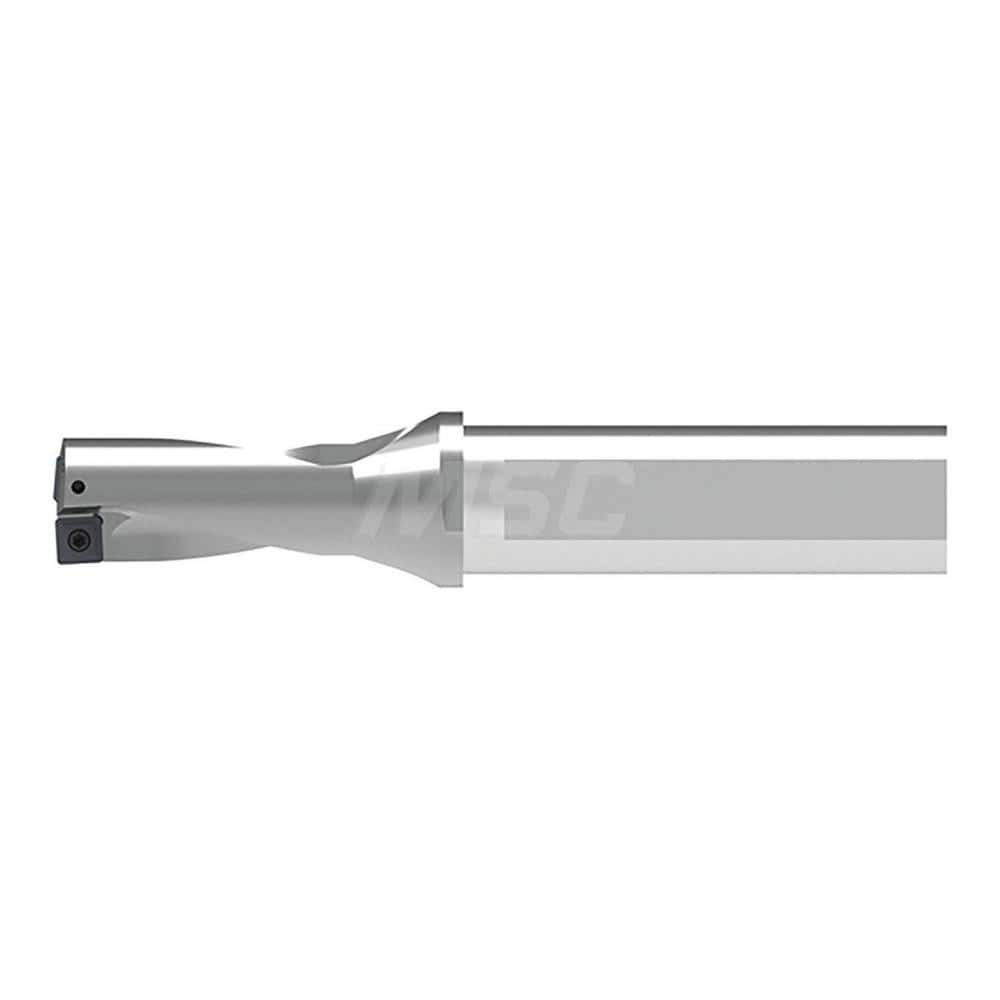

Indexable Insert Drills; Drill Style: KUBQ; Drill Diameter (Decimal Inch): 1.2500; Drill Diameter (Inch): 1-1/4; Maximum Drill Depth (Decimal Inch): 2.5200; Shank Type: Weldon; Shank Diameter (Inch): 1-1/4; Drill Diameter Range (Decimal Inch): 1.0000 to 1
Item #: 11633435
Brand: Komet
Model #: 1587931801
Product Specifications
| Drill Style | KUBQ |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Drill Diameter (Inch) | 1-1/4 |
| Maximum Drill Depth (Decimal Inch) | 2.5200 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOEX |
| Drill Depth by Diameter Ratio | 2xD |
| Series | 15879 |
| Flute Length (Decimal Inch) | 2.5200 |
| Body Length (Decimal Inch) | 3.6610 |
| Shank Length (Decimal Inch) | 3.2500 |
| Overall Length/Projection (Decimal Inch) | 6.9110 |
| Collar Diameter (Decimal Inch) | 1.5400 |
| Extension From Holder (Inch) | 3.6610 |
| Coolant Through | Yes |
