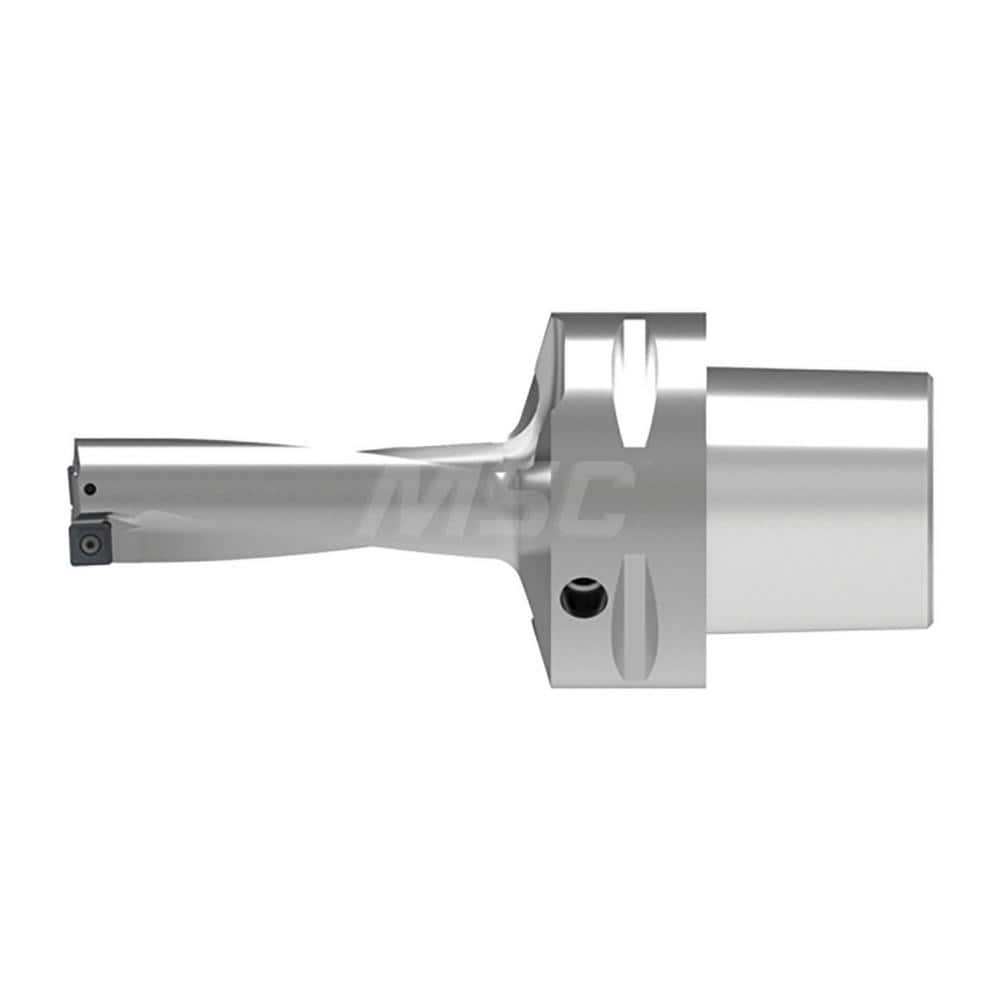

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 1.1811; Drill Diameter (mm): 30.00; Maximum Drill Depth (mm): 90.00; Shank Type: Modular Connection; Drill Diameter Range (Decimal Inch): 1.0000 to 1.3000; Cutting Direction: Right
Item #: 11633211
Brand: Komet
Model #: 1087330055
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 1.1811 |
| Drill Diameter (mm) | 30.00 |
| Maximum Drill Depth (mm) | 90.00 |
| Shank Type | Modular Connection |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 3xD |
| Series | 10873 |
| Flute Length (mm) | 90.00 |
| Body Length | 131.00 |
| Shank Length (mm) | 30.00 |
| Modular Connection Size | PSC50 |
| Overall Length/Projection (mm) | 161.00 |
| Collar Diameter (mm) | 50.00 |
| Coolant Through | Yes |
