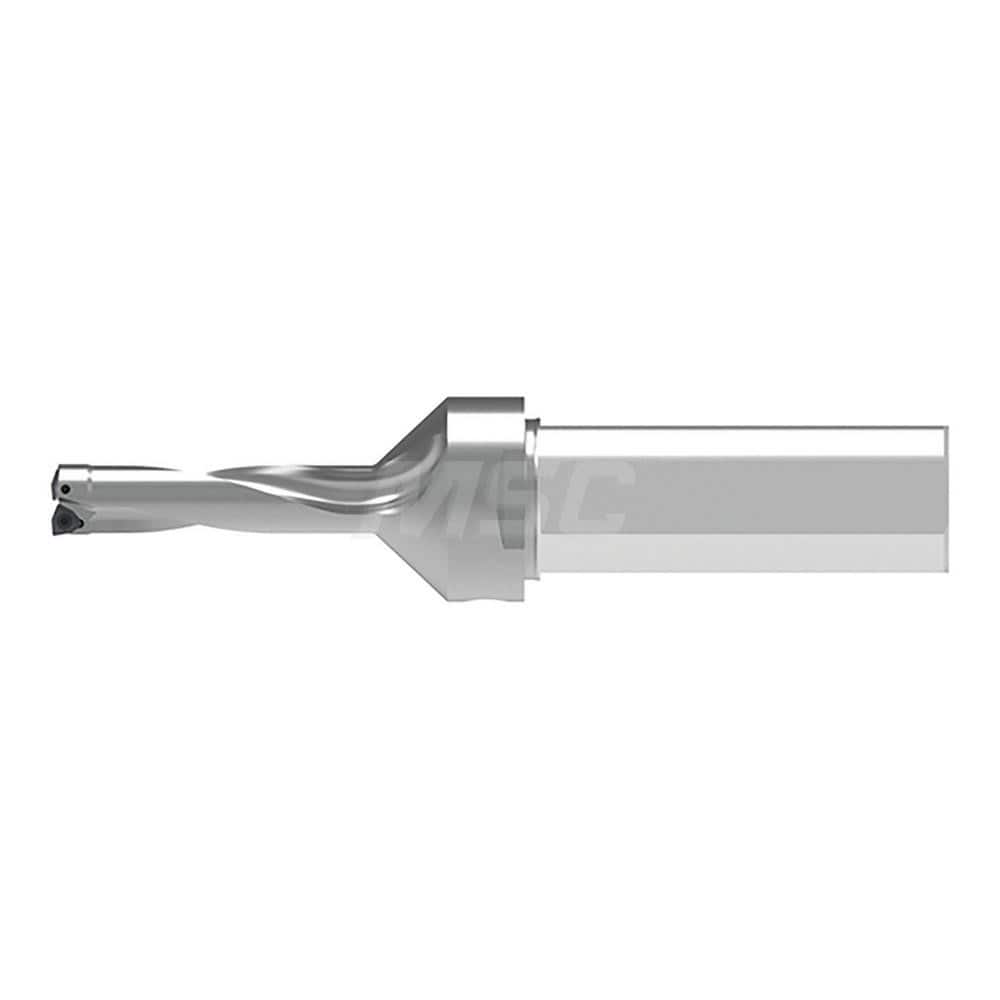

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 0.7810; Drill Diameter (Inch): 25/32; Maximum Drill Depth (Decimal Inch): 3.1240; Shank Type: Weldon; Shank Diameter (Inch): 1-1/4; Drill Diameter Range (Decimal Inch): 0.7500 to 1
Item #: 11632841
Brand: Komet
Model #: 1589419801
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 0.7810 |
| Drill Diameter (Inch) | 25/32 |
| Maximum Drill Depth (Decimal Inch) | 3.1240 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 15894 |
| Flute Length (Decimal Inch) | 3.1240 |
| Body Length (Decimal Inch) | 4.5020 |
| Shank Length (Decimal Inch) | 3.2500 |
| Overall Length/Projection (Decimal Inch) | 7.7520 |
| Collar Diameter (Decimal Inch) | 1.5750 |
| Extension From Holder (Inch) | 4.5020 |
| Coolant Through | Yes |
