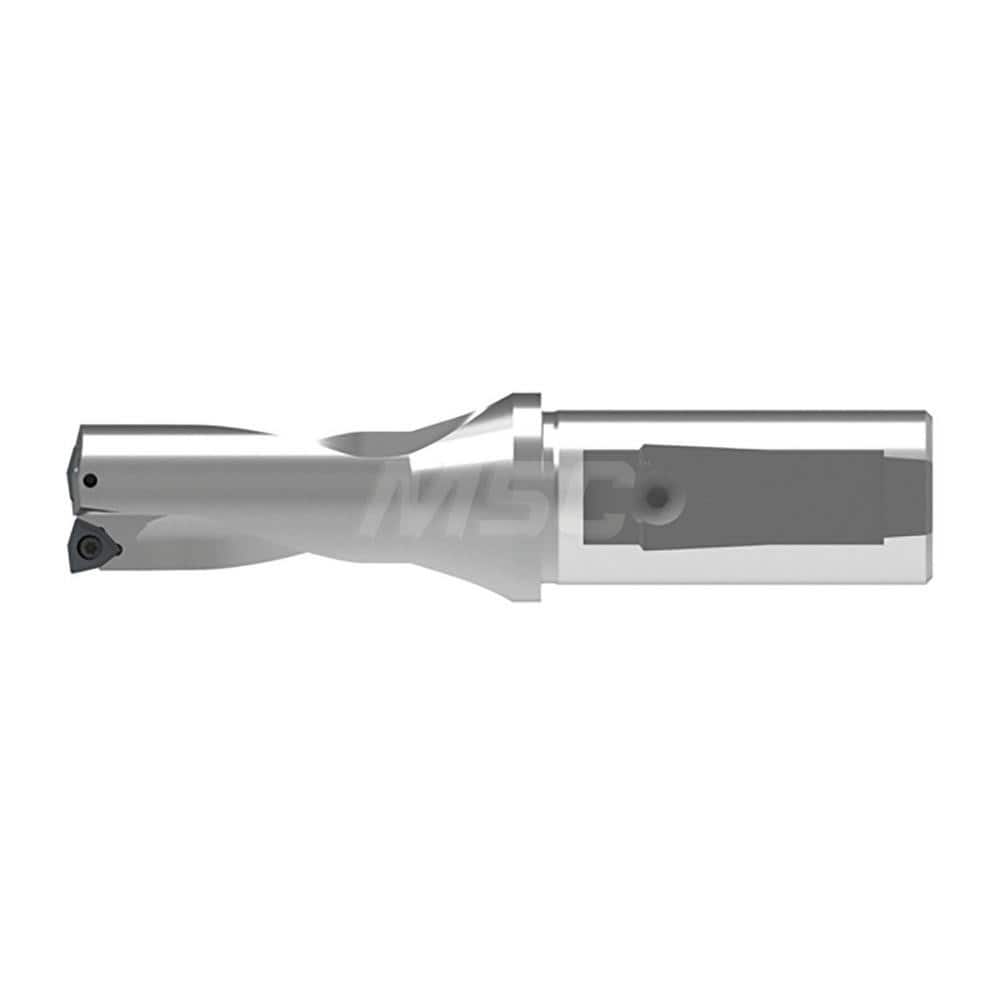

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 1.6142; Drill Diameter (mm): 41.00; Maximum Drill Depth (mm): 82.00; Shank Type: Weldon; Shank Diameter (mm): 32.00; Drill Diameter Range (Decimal Inch): 1.5000 to 2.0000; Cutting
Item #: 11632817
Brand: Komet
Model #: 1089241013
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 1.6142 |
| Drill Diameter (mm) | 41.00 |
| Maximum Drill Depth (mm) | 82.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 2xD |
| Series | 10892 |
| Flute Length (mm) | 82.00 |
| Body Length | 121.00 |
| Shank Length (mm) | 60.00 |
| Overall Length/Projection (mm) | 181.00 |
| Collar Diameter (mm) | 39.00 |
| Coolant Through | Yes |
