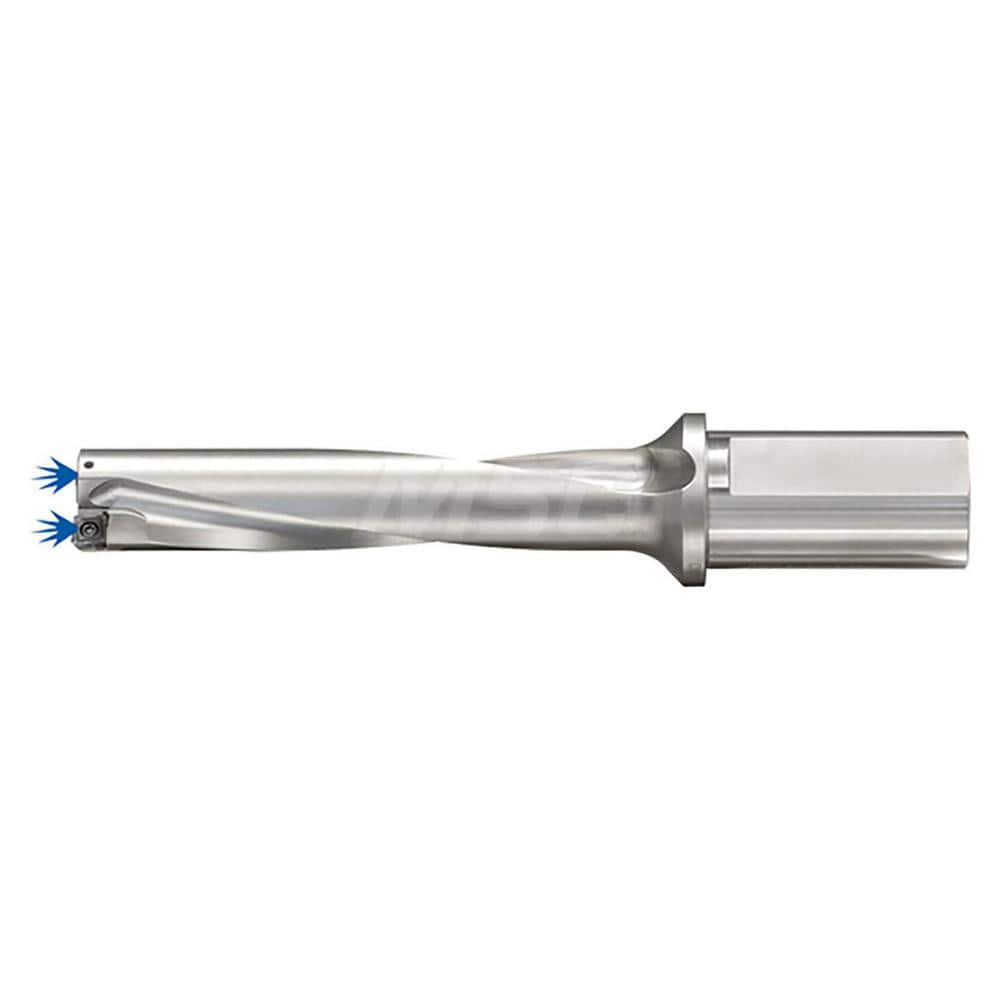

Indexable Insert Drills; Drill Style: MD900; Drill Diameter (Decimal Inch): 0.5709; Drill Diameter (mm): 14.50; Maximum Drill Depth (mm): 72.50; Shank Type: Weldon; Shank Diameter (mm): 20.00; Drill Diameter Range (Decimal Inch): 0.0000 to 0.7500; Cutting
Item #: 11631991
Brand: Komet
Model #: 10855145
Product Specifications
| Drill Style | MD900 |
| Drill Diameter (Decimal Inch) | 0.5709 |
| Drill Diameter (mm) | 14.50 |
| Maximum Drill Depth (mm) | 72.50 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | SONT |
| Drill Depth by Diameter Ratio | 5xD |
| Series | 10855 |
| Flute Length (mm) | 72.50 |
| Body Length | 89.00 |
| Shank Length (mm) | 50.00 |
| Overall Length/Projection (mm) | 139.00 |
| Collar Diameter (mm) | 30.00 |
| Coolant Through | Yes |
