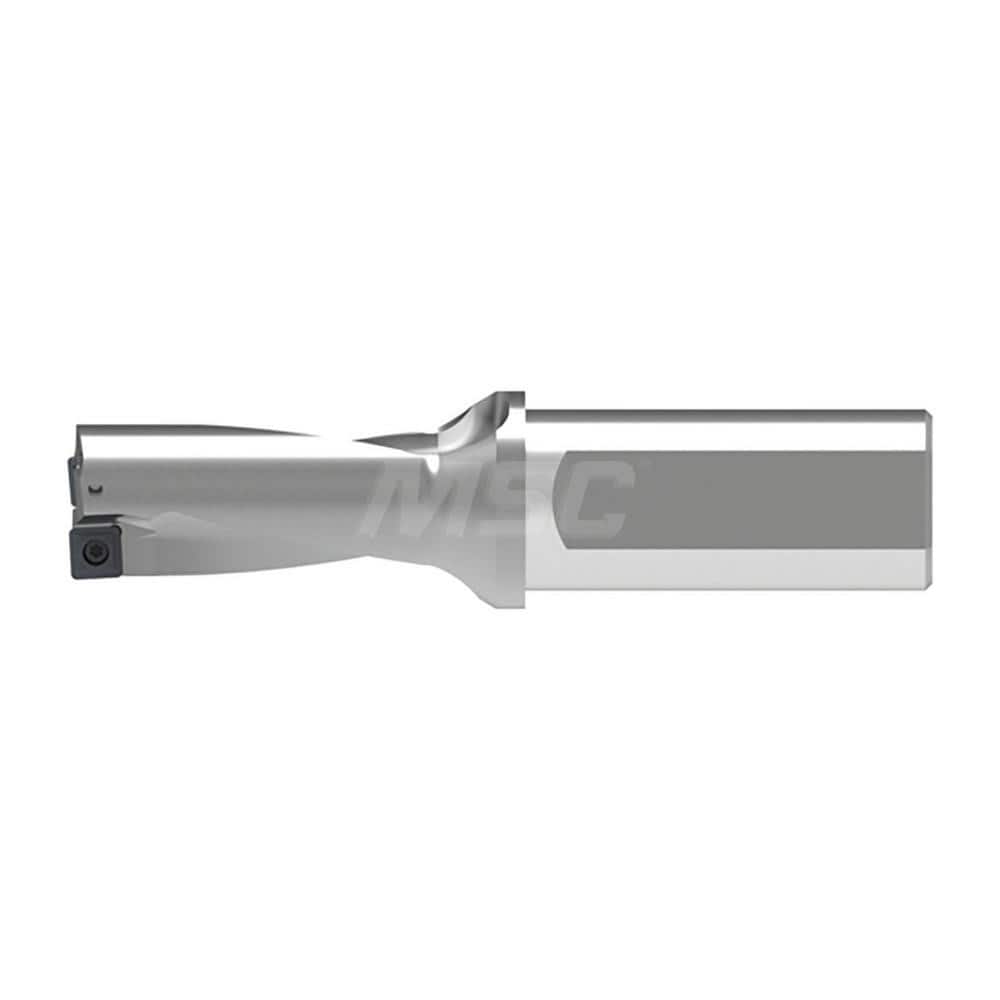

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 1.4764; Drill Diameter (mm): 37.50; Maximum Drill Depth (mm): 76.00; Shank Type: Weldon; Shank Diameter (mm): 40.00; Drill Diameter Range (Decimal Inch): 1.3000 to 1.5000; Cutting
Item #: 11628807
Brand: Komet
Model #: 1087237504
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 1.4764 |
| Drill Diameter (mm) | 37.50 |
| Maximum Drill Depth (mm) | 76.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 40.00 |
| Drill Diameter Range (Decimal Inch) | 1.3000 to 1.5000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 2xD |
| Series | 10872 |
| Flute Length (mm) | 76.00 |
| Body Length | 103.00 |
| Shank Length (mm) | 68.00 |
| Overall Length/Projection (mm) | 171.00 |
| Collar Diameter (mm) | 50.00 |
| Coolant Through | Yes |
