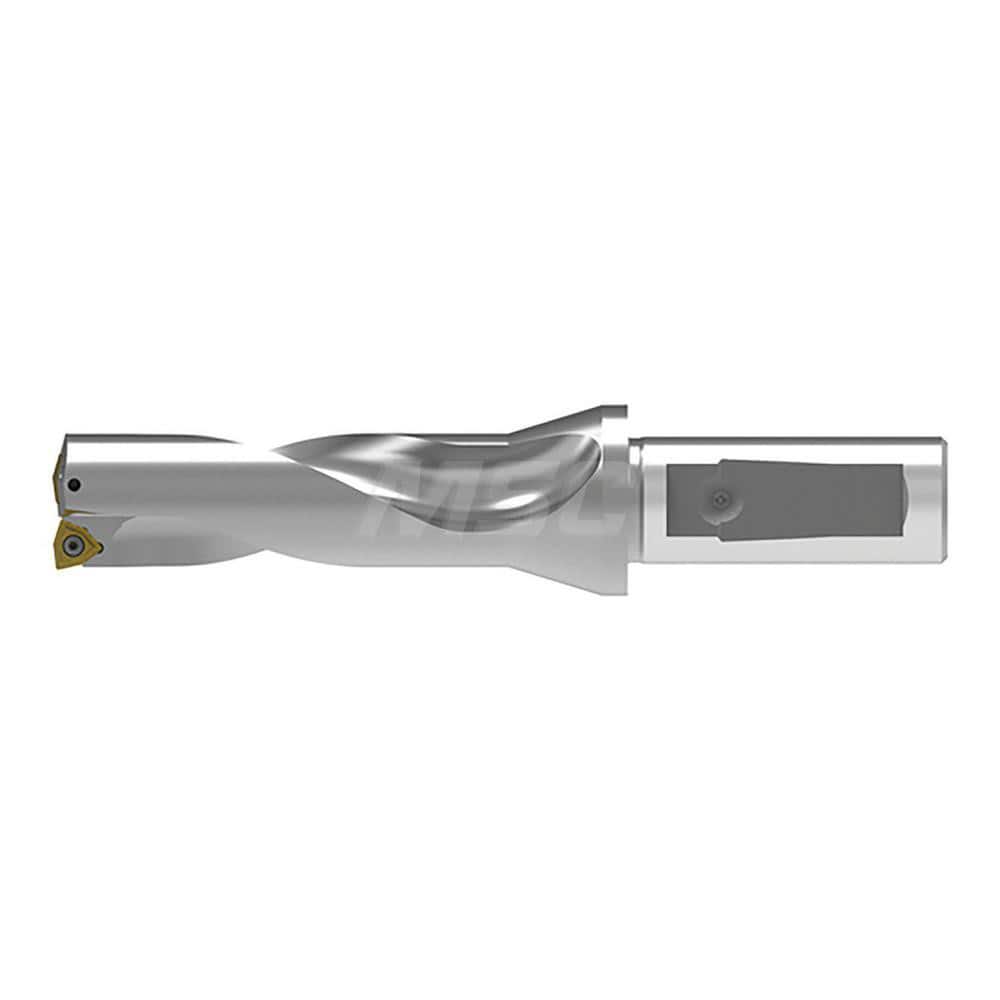

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 0.6693; Drill Diameter (mm): 17.00; Maximum Drill Depth (mm): 51.00; Shank Type: Weldon; Shank Diameter (mm): 20.00; Drill Diameter Range (Decimal Inch): 0.0000 to 0.7500; Cutting
Item #: 11628666
Brand: Komet
Model #: 1089317011
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 0.6693 |
| Drill Diameter (mm) | 17.00 |
| Maximum Drill Depth (mm) | 51.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 3xD |
| Series | 10893 |
| Flute Length (mm) | 51.00 |
| Body Length | 75.00 |
| Shank Length (mm) | 50.00 |
| Overall Length/Projection (mm) | 125.00 |
| Collar Diameter (mm) | 30.00 |
| Coolant Through | Yes |
