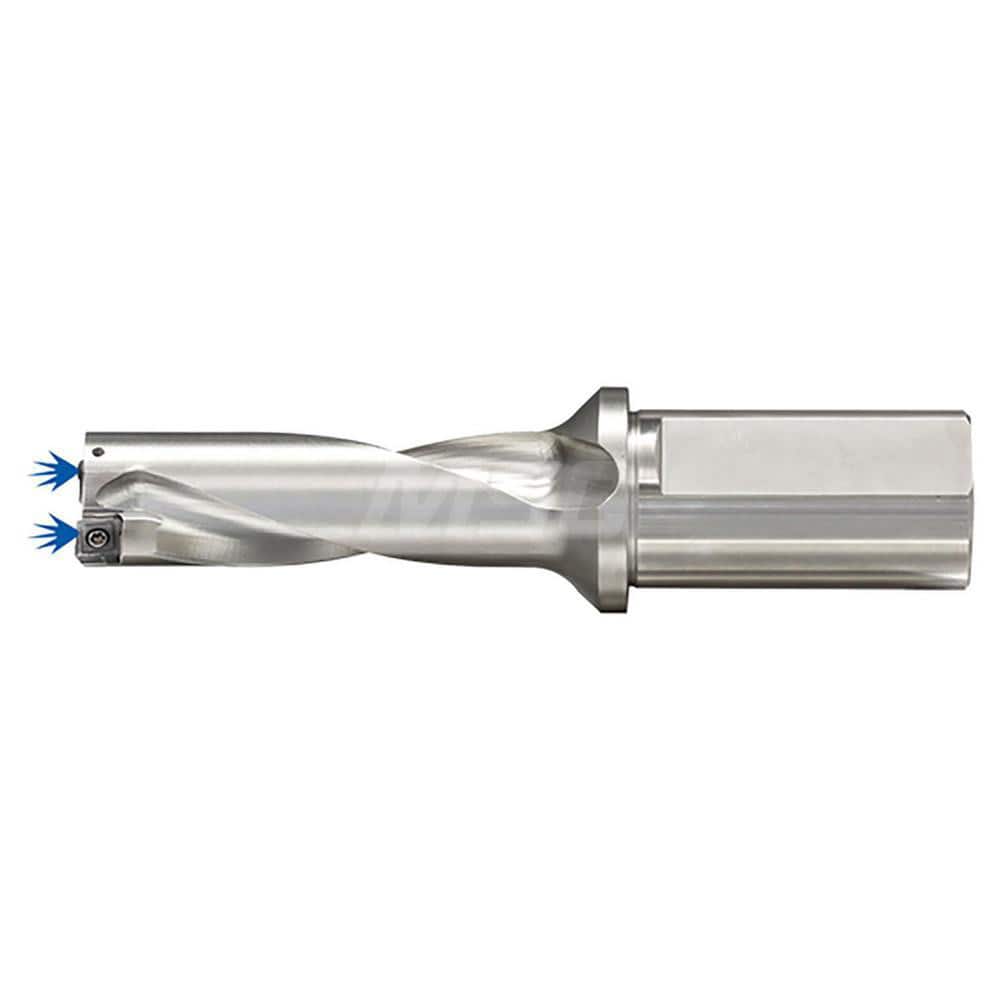

Indexable Insert Drills; Drill Style: MD900; Drill Diameter (Decimal Inch): 1.5748; Drill Diameter (mm): 40.00; Maximum Drill Depth (mm): 120.00; Shank Type: Weldon; Shank Diameter (mm): 40.00; Drill Diameter Range (Decimal Inch): 1.5000 to 2.0000; Cuttin
Item #: 11624764
Brand: Komet
Model #: 10853400
Product Specifications
| Drill Style | MD900 |
| Drill Diameter (Decimal Inch) | 1.5748 |
| Drill Diameter (mm) | 40.00 |
| Maximum Drill Depth (mm) | 120.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 40.00 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | SONT |
| Drill Depth by Diameter Ratio | 3xD |
| Series | 10853 |
| Flute Length (mm) | 120.00 |
| Body Length | 150.00 |
| Shank Length (mm) | 70.00 |
| Overall Length/Projection (mm) | 220.00 |
| Collar Diameter (mm) | 56.00 |
| Coolant Through | Yes |
