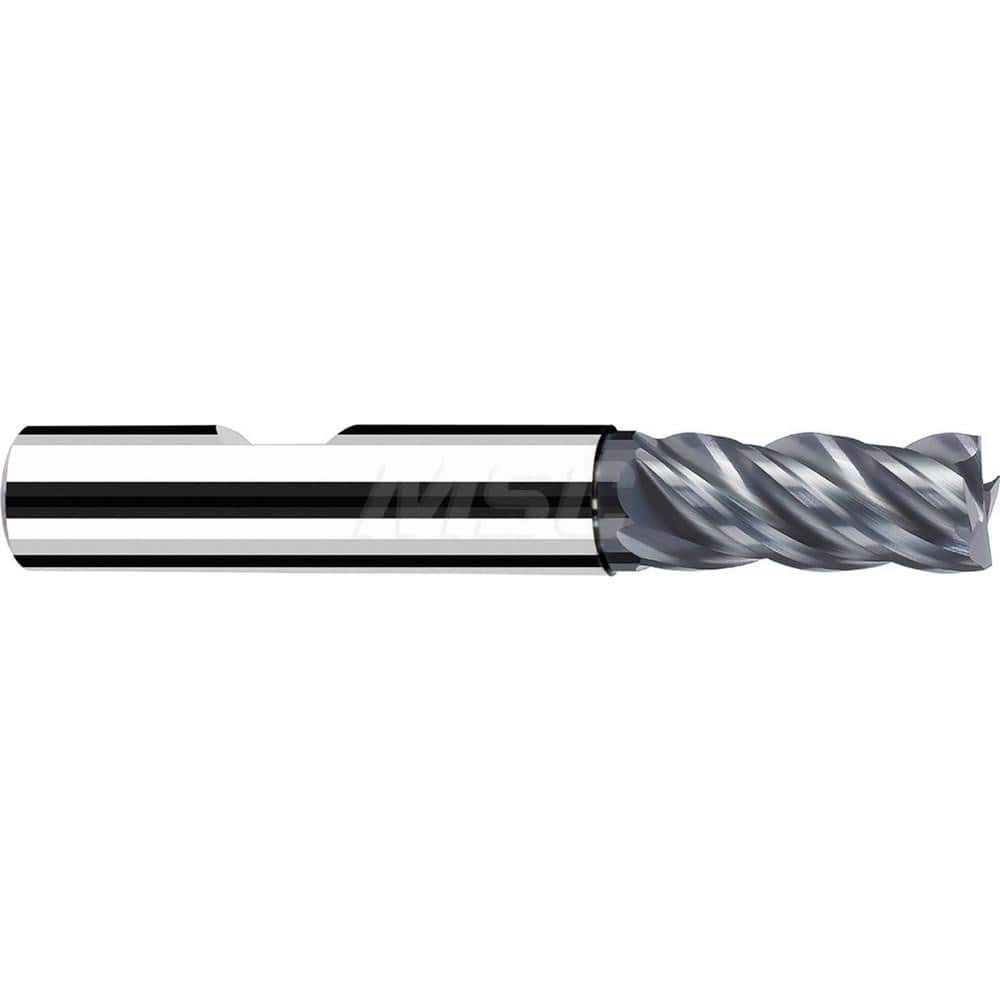

Square End Mill: 0.1969'' Dia, 0.5118'' LOC, 0.1969'' Shank Dia, 1.9685'' OAL, 3 Flutes, Solid Carbide Single End, Polychrom Finish, Spiral Flute, 40 ™ Variable Helix, Centercutting, RH Cut, RH Flute, Series Favora
Item #: 11577384
Brand: Fraisa
Model #: P45217258
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1969 |
| Mill Diameter (mm) | 5.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 13.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | Polychrom |
| Shank Diameter (mm) | 5.00 |
| Helix Angle | 40 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Extended Reach | No |
| Overall Length (mm) | 50.00 |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| Length of Cut (Decimal Inch) | 0.5118 |
| Material Grade | HM |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Overall Length (Decimal Inch) | 1.9685 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Length Type | Standard |
| Series | Favora |
