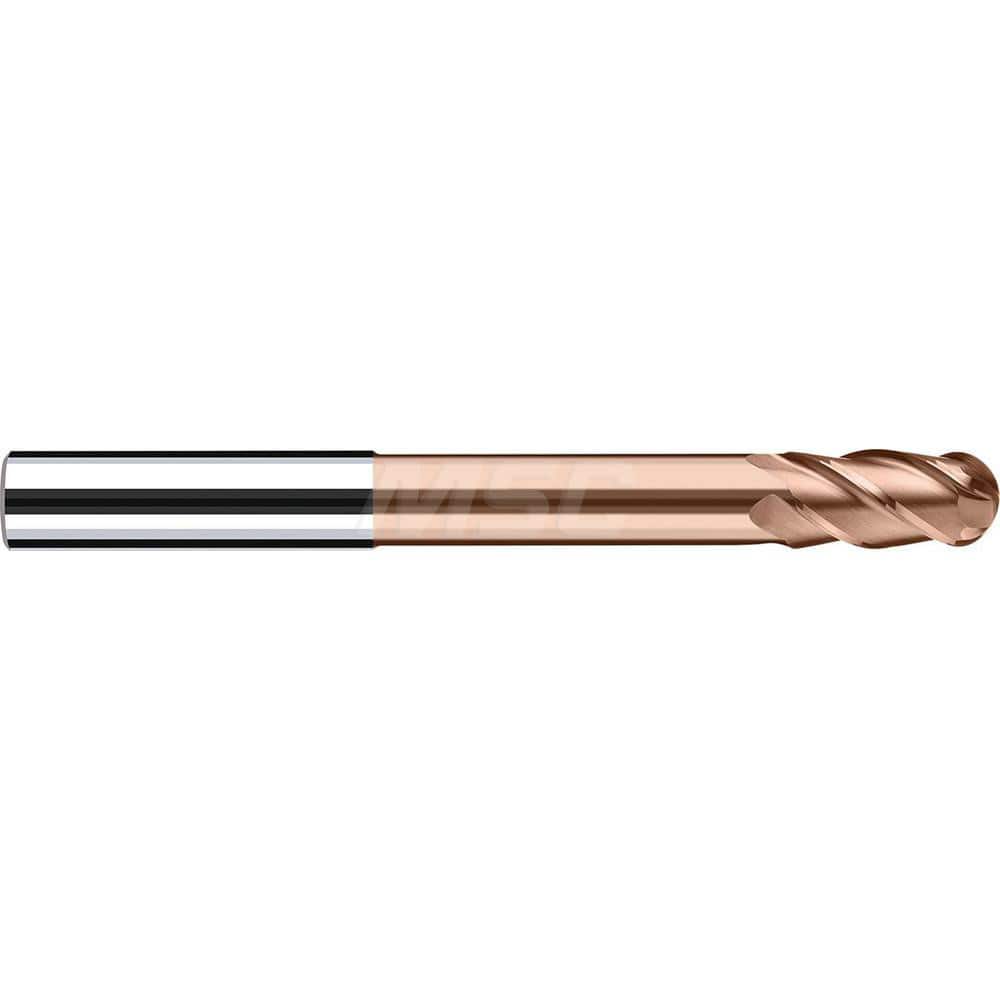

Ball End Mill: 2.7165″ Dia, 0.315″ LOC, 4 Flute, Solid Carbide 69 mm OAL, 6 mm Shank Dia, 40 ° Helix, Duro-Si Coated, Single End, Series Sphero-X
Item #: 11577350
Brand: Fraisa
Model #: H7494220
Product Specifications
| Mill Diameter (Decimal Inch) | 2.7165 |
| Mill Diameter (mm) | 4.00 |
| Length of Cut (mm) | 8.00 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Ball End |
| Helix Angle | 40 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 to 0.4000 |
| Variable Helix | Yes |
| Length Type | 6xd |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 3.70 |
| Neck Length (Inch) | 24 |
| Neck Length (Decimal Inch) | 24.0000 |
| Overall Length (Decimal Inch) | 2.7165 |
| Overall Length (mm) | 69.00 |
| Material Grade | XA |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Sphero-X |
| Flute Type | Spiral |
| Coating Classification | X-Generation |
| Corner Radius (Decimal Inch) | 1.5000 |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | Duro-Si |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3150 |
